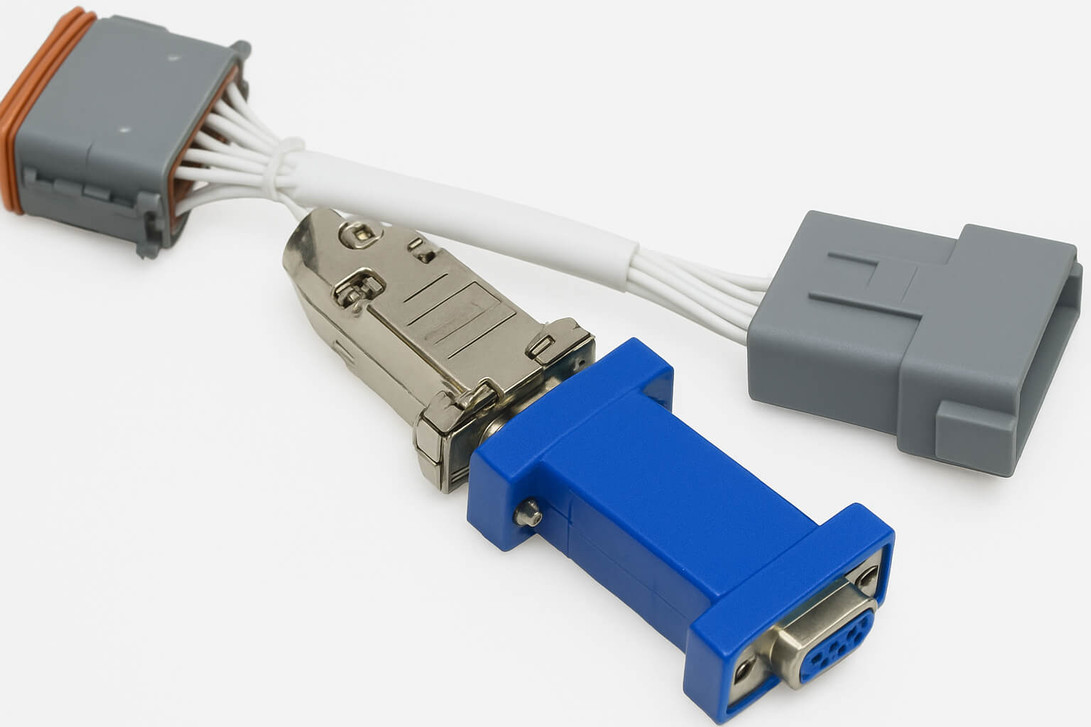

The Woodward 8923‑1061 L-Series Serial Communication Kit is an essential support tool for configuring, tuning, and servicing your Woodward L-Series Position Controller. Designed to bridge communications between your actuator and PC via RS‑232, this kit ensures efficient monitoring and programming.
What Is the 8923‑1061 Serial Communication Kit?
Woodward’s Kit # 8923‑1061 is a specialized RS‑232 serial cable used for establishing a connection between a PC and the L-Series actuator. It enables you to run the Service Tool software for tuning, diagnostics, and firmware configuration.
Why the Kit Is Important
Enables Configuration & Monitoring
Connect using this cable to utilize the Woodward Service Tool—ideal for monitoring position, tuning performance, and updating settings.
Essential for Setup and Troubleshooting
Use it during initial setup or servicing phases, as the serial connection temporarily takes over I/O pins 4 and 6. This is especially useful when fine-tuning your actuator.
Built for Safe Use
WARNING: A ground loop risk exists between your PC and L-Series actuator. Woodward advises using an isolation transformer between your PC and power source to avoid RS‑232 port damage.Woodward+8Woodward+8Scribd+8
Quick Comparison: RS‑232 vs. CAN Configuration
|
Communication Method |
Use Case |
Note |
|
RS‑232 (via 8923‑1061) |
Used for configuration with the Service Tool |
Pins 4 & 6 used by the kit; not for permanent use |
|
CAN Bus |
Used in CAN-capable L-Series models for ongoing communication |
Requires separate hardware and configuration |
Where It Excels
- Perfect for technicians and service departments needing configuration access to Woodward actuators
- Ideal for initial calibration of new or replacement L-Series controllers
- Supports preventive maintenance by offering real-time status and condition monitoring
Get Started with Configuration
- Install Woodward Service Tool software on your PC.
- Connect the 8923‑1061 kit between pins 4 and 6 of the L-Series actuator and your computer’s serial port.
- Use the Service Tool to monitor position, tune performance, or update parameters.
- Disconnect the cable and reboot the actuator to resume normal operation per CAN or PWM configuration if configured.
Ready to Optimize Your L-Series Actuator?
Ensure accurate setup and efficient tuning with the Woodward 8923‑1061 Serial Communication Kit:
- Find it here: 8923‑1061 Kit
- Explore other configuration tools on our homepage
- Need technical help or quote? Call us: 1‑(561) 317‑4154
Unlock full configuration access to your Woodward L-Series with confidence—get your communication kit today!
