Product Description

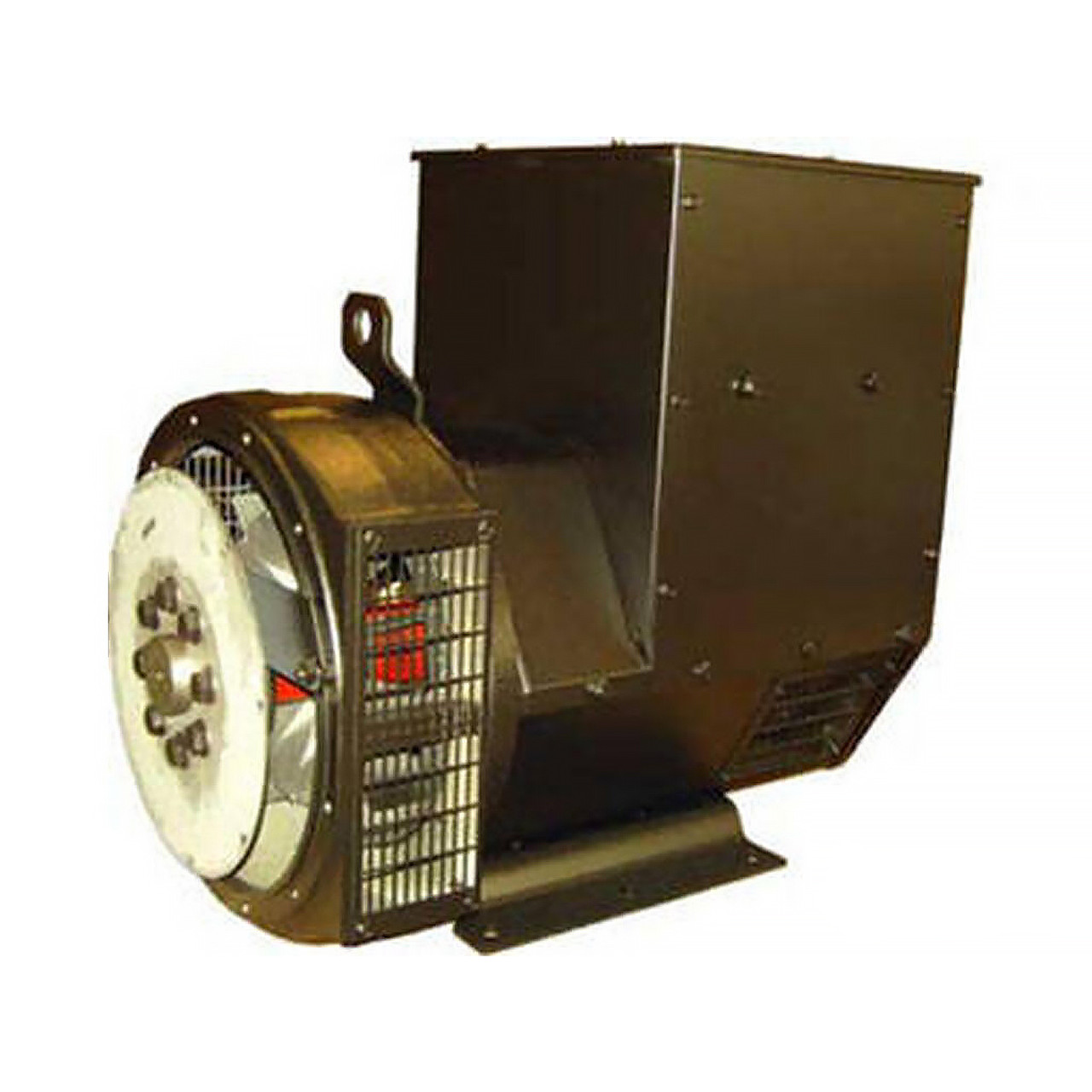

UCI274C 3 PHASE STAMFORD GENERATOR ALTERNATOR
100 KW, 125 KVA, 3 PHASE, 12 WIRES RECONNECTABLE, 190V TO 480V
Individually Load Bank Tested & ISO9001 Certified
Our UCI274 series is available in single or double bearing applications, Self-Excited Automatic Voltage Regulator, adaption adapters offered to SAE 2, 3, 4, 5, and 6. We manage a large stock in the US with very competitive pricing and best lead times. We currently offer FREE GROUND SHIPPING with any purchase of a Stamford generator end from us.
Purchasing a UCI274 series from us will include the following specification at no additional cost:
- 4 Poles
- 3 Phase
- 0.8 Power Factor
- 1800 RPM
- 60HZ
- Available in 416v, 440v, 208v, 240v, 220v or 380v
- 12 Lead Reconnectable
- Winding 311 - 12 wire
- Single Bearing with SAE Flange/Disc
- Class H Insulation
- IP23 Enclosure
- High efficiency and motor starting capacity
- SX460 Automatic Voltage Regulator *Standard Included
- MX341 Automatic Voltage Regulator with PMG * Option
- RSK2001 Kit Diodes and Varistor *Standard Included
- Anti-Condensation Heaters * Option
