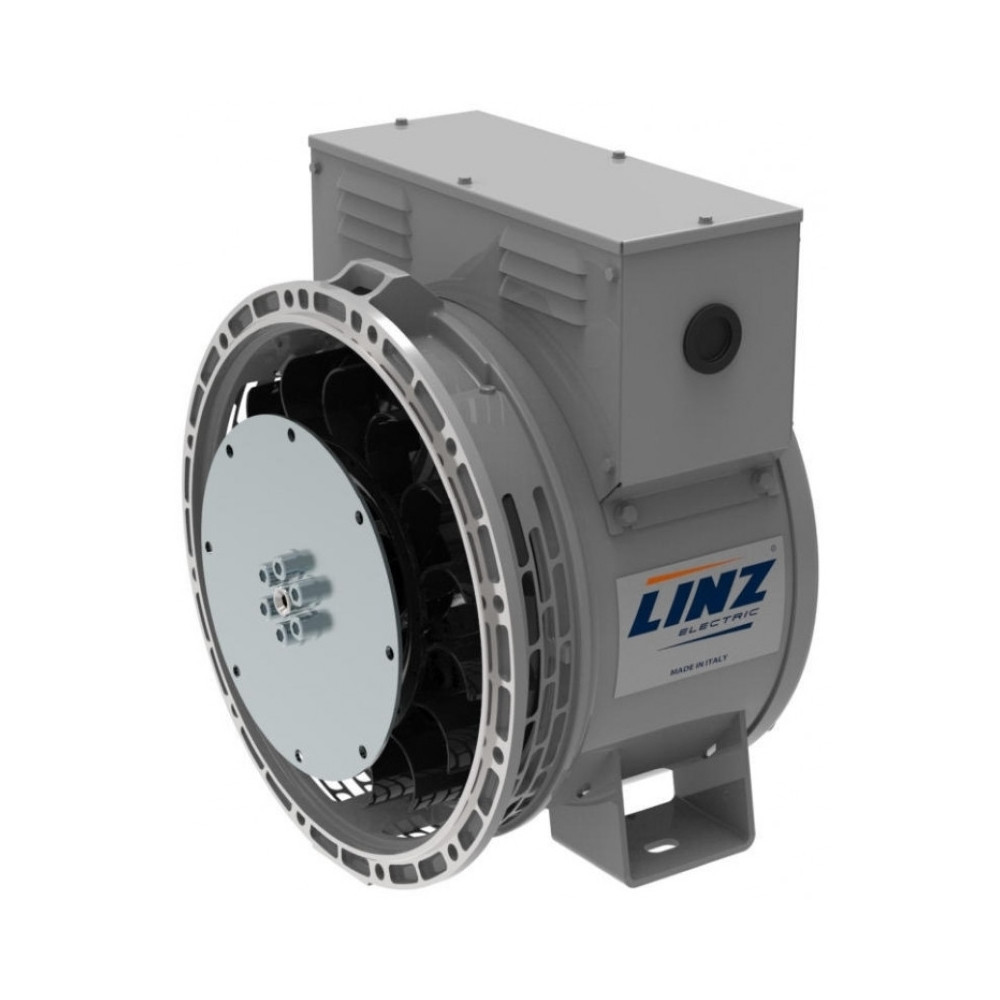

12.5kw 1-PH Linz Generator End for Phasor Marine Generators

Product Description

* REPLACMENT FOR PHASOR MARINE 12.5KW ELECTRICAL END *

12.5 kw, Voltage: 120/240, 1 Phase, SAE5/6.5, 4 pole generator

HVR11 AVR

* TRUCK FREIGHT RATE IS ONLY FOR EAST COAST STATES, USA *

The CPS18 SC (60 Hz) alternators have been realized focusing on compactness and high reliability criteria for use in continuous service applications and in particular conditions such as dusty, humid, and saline environments, and high temperatures.

 Model:

• CPS18 SC (60 Hz)
• Weight:
  70.70 kg
• Dimensions (L х W х H):
  318.20 x 366.00 x 439.00 mm
• Pole number:
  4
• Phase number:
  1
• Prime Power 1 phase (kVA):
  10
• Limited Time Power 1 phase (kVA):
  11.4
• Frequency (Hz):
  60
• Overspeed (RPM):
  1800
• Maximum Overspeed (RPM):
  2250
• Voltage (V):
  240
• Power factor:
  1
• Voltage range (V):
  110,115,120,220,230,240
