Product Description

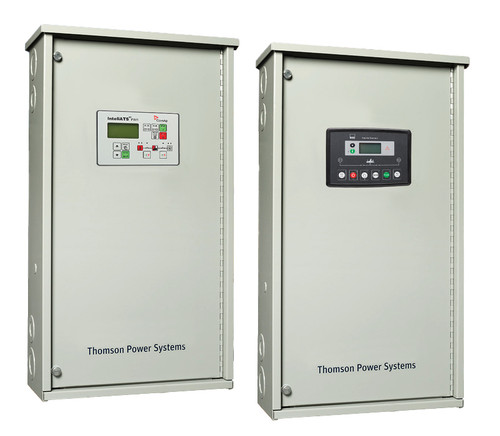

TS933A0125A 125A, ATS 3 Pole, Nema 1 Enclosure
IEC 947-6-1 Equivalent Commercial & Industrial Applications, 125 - 2000 AMP, 3 Pole, 3 Phase, 4 Wire, 480V Max Applications
- Designed to meet the requirements of Non-UL markets (IEC).
- Available from 125 amp to 2000 amp 3 Pole, three phase 480 volt.
- IEC certified Power Contactor Switching Units
- Door mounted ATS Controller, Graphical LCD Display
- Manufactured in compliance with IEC 947-6-1.
- 2 Year Warranty
• Normal Operation Status LED Lights: Load on Utility & Load on Generator, Utility & Generator Source Available
• Three Phase Voltage sensing on Utility & Generator Sources
• Generator AC frequency sensing
• Utility under voltage control set point
• Generator Set points: under voltage (adjustable), under frequency (adjustable)
• Front Panel configurable or via Serial/USB port
• Engine warm-up timer (adjustable)
• Utility return timer (adjustable)
• Engine start timer (adjustable)
• Engine cool down timer (adjustable)
• Local utility power fail simulation test pushbutton & LED, front faceplate mounted
• Engine start contact (5A,120/240VAC resistive max.)
• Multilanguage support
• RTC Event and Performance Logs
• In-Phase Transfer with Passive Synch Check
