Product Description

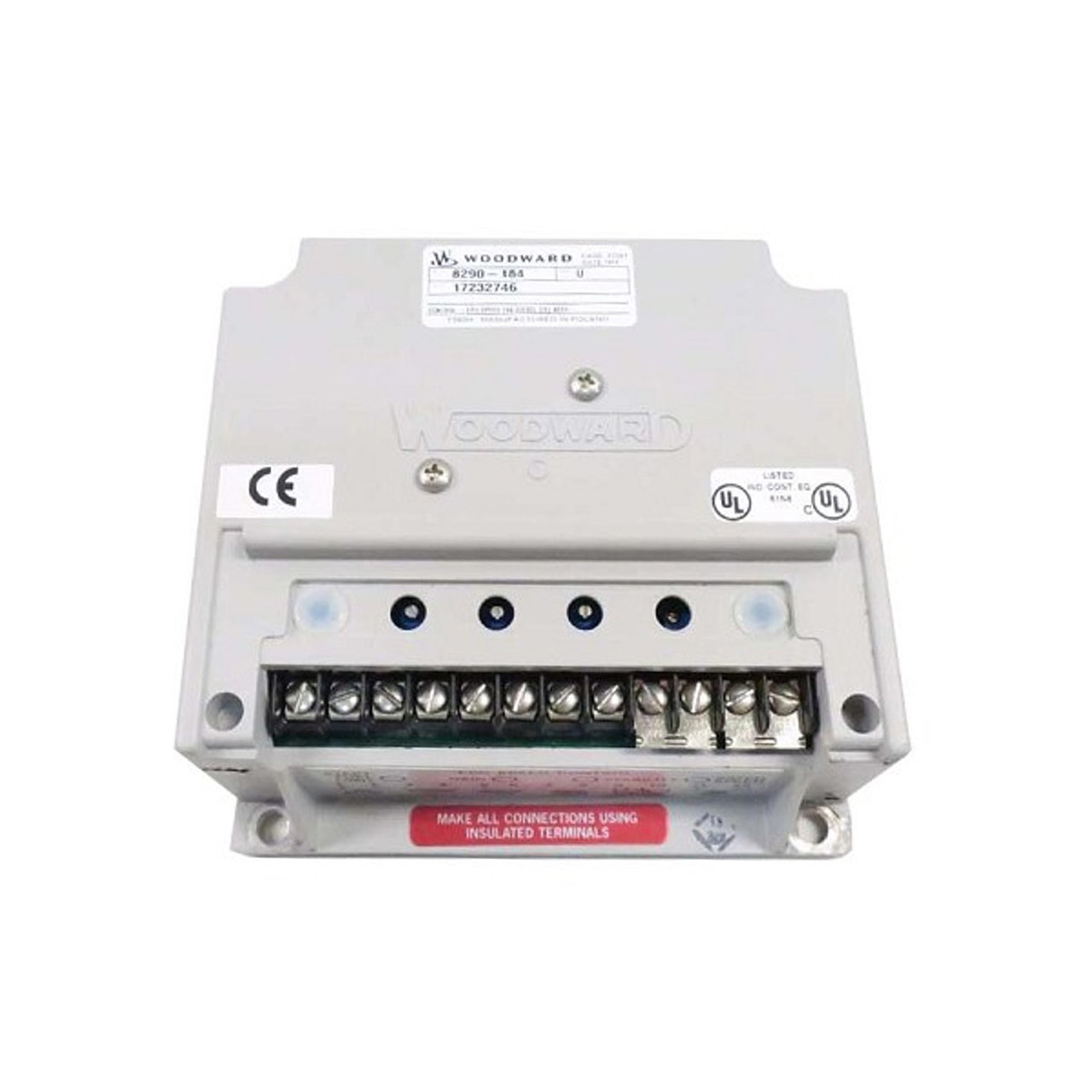

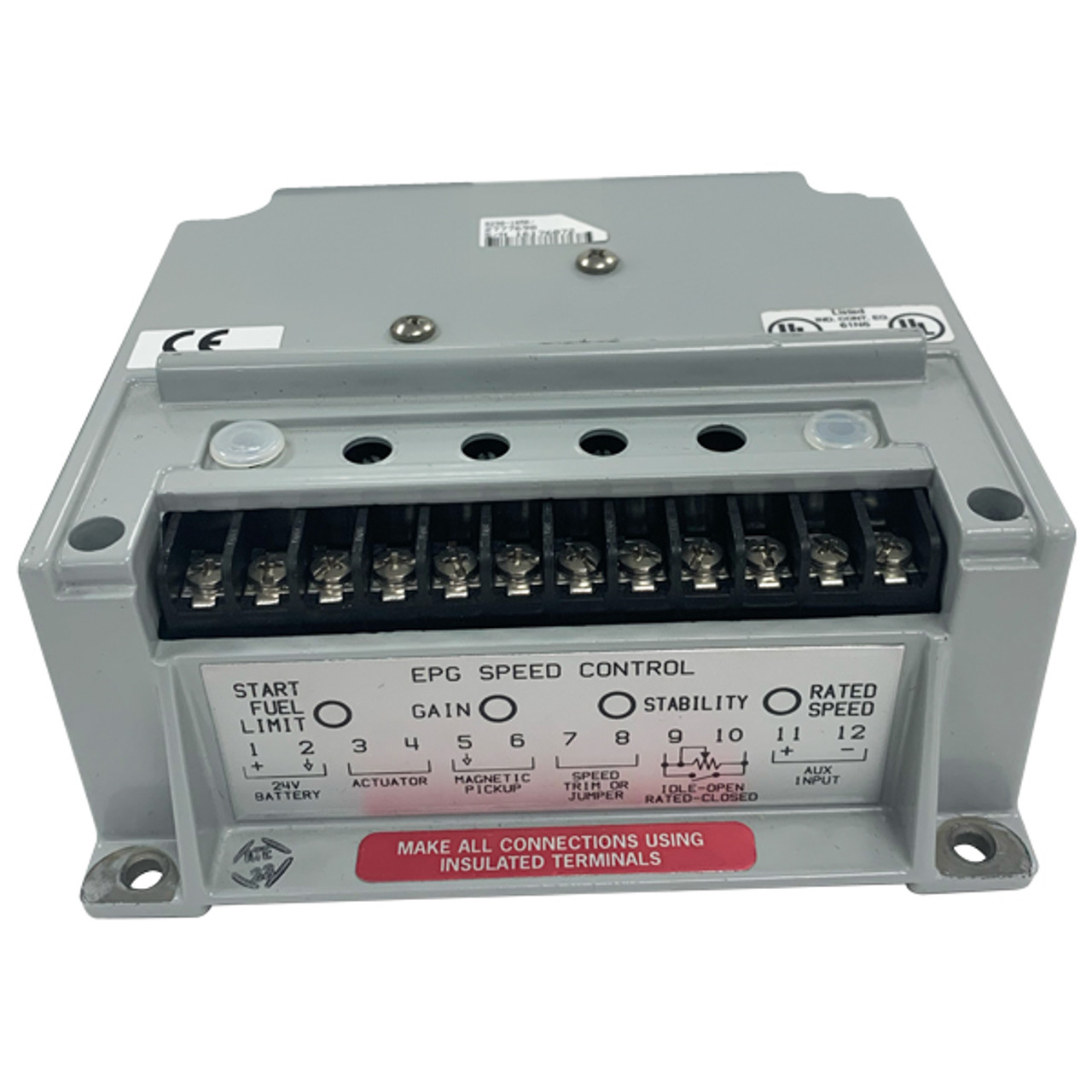

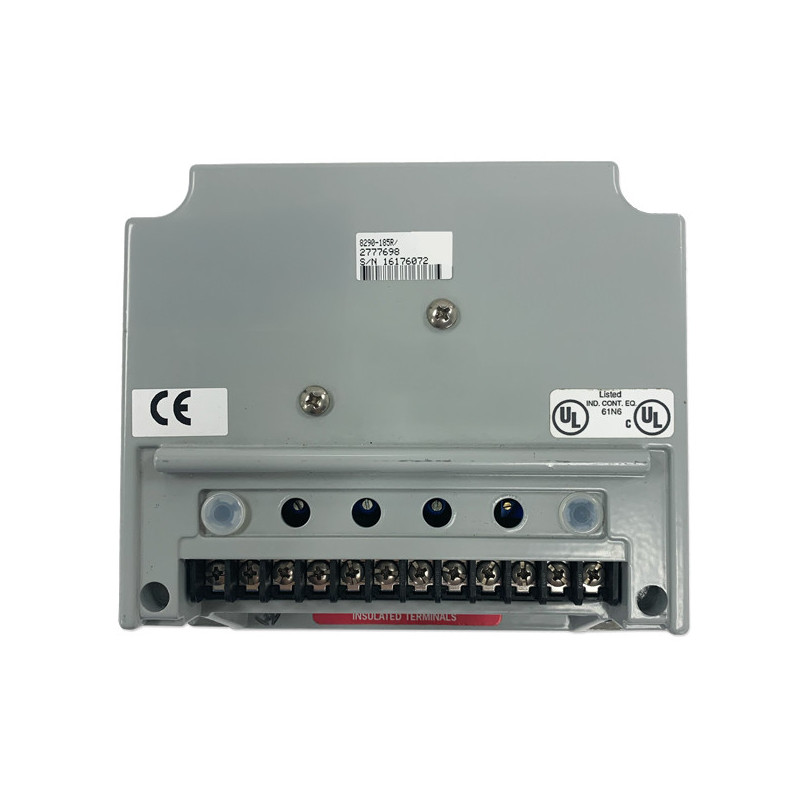

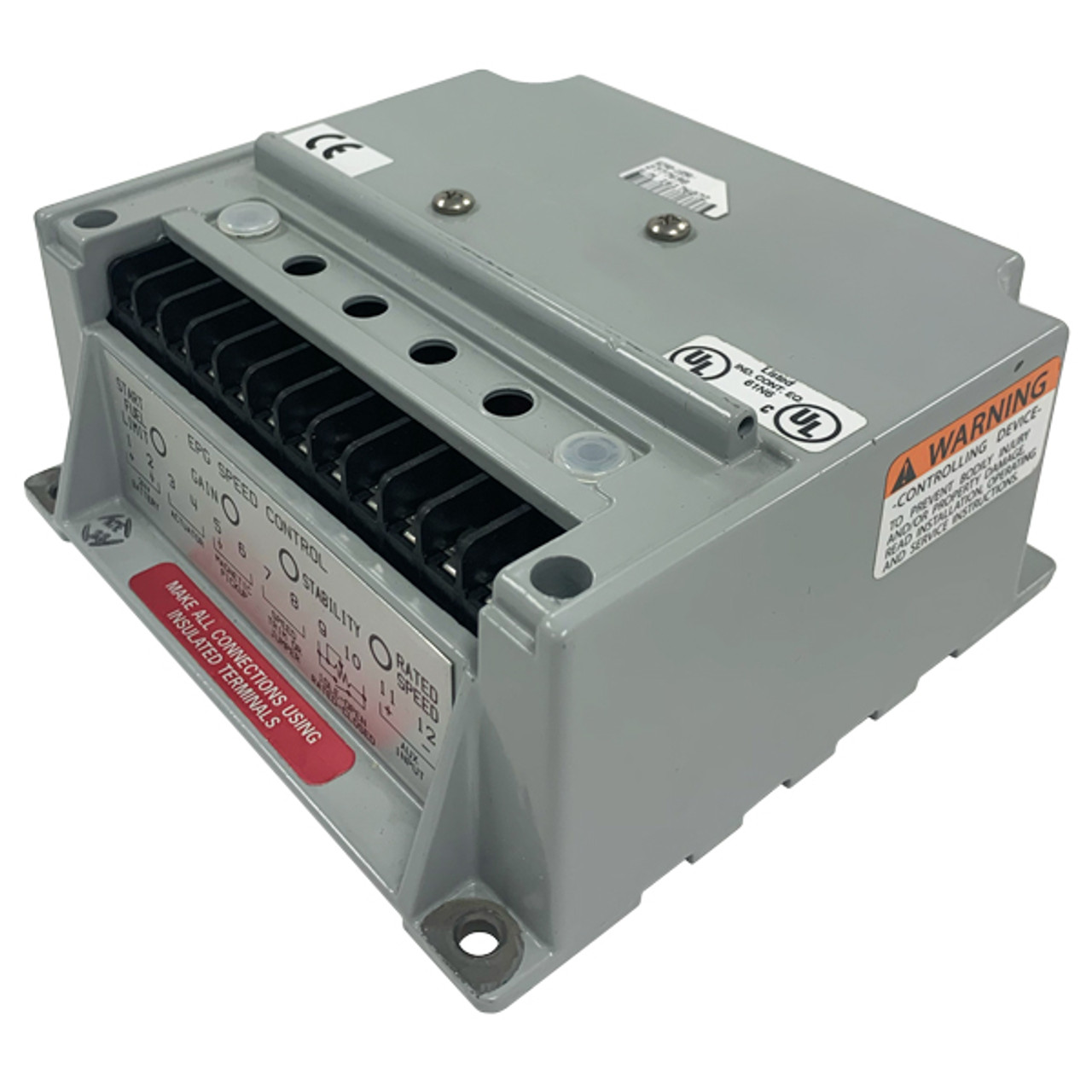

8290-184 Electrically Powered Governor Systems
24 Vdc, 524 or 1724 SC for Natural Gas or Gasoline, w/Start Fuel Limit. 8290-185. Speed Control (Droop) For 512/524 and 1712/1724 Series ...
*High quality replacement speed control ESD5500E*
https://acepowerparts.com/esd5500e-gac-speed-control
Electrically Powered Governor (EPG) systems are engineered for meticulous speed regulation of diesel engines, particularly beneficial for prime movers devoid of a mechanical drive or hydraulic oil source for the governor, and which harbor low-mass, low-friction fuel linkages.
FEATURES & FUNCTIONALITY
The Electrically Powered Governor (EPG) is crafted for accurate isochronous speed management of diesel engines. This electric governor is particularly suited for prime movers lacking a mechanical drive or hydraulic oil provision for the governor and possessing low-mass, low friction fuel connections.
EPGs are integral to a comprehensive control system encompassing three components, which include:
-
Electronic speed regulation
-
Electric Actuator (procured separately, see options below for 24 V applications)
-
Magnetic pickup (procured separately)
Actuator model variants have the subsequent work outputs:
-
Model 524 Full governor motion of 30°, 1.0 J (0.75 ft-lb) (Item: 8256-021)
-
Model 724 Full governor motion of 35°, 2.3 J (1.7 ft-lb) (Item: 8256-016)
-
All actuator output shafts are 0.375"-36 SAE serrated on each extremity
Advantages:
-
Initiation-fuel restriction for smoke moderation
-
No mechanical drive or hydraulic source necessitated
-
Compatible with load sharing accessories
-
Switch-designated dual dynamics
-
Conformity: EU Directive, UL/cUL
