Product Description
The Electronic Modular Control Panel (EMCP II) combines the engine control and AC metering into one, user-friendly control. The displays, along with enhanced self-diagnostic capabilities, take the guesswork out of generator set monitoring. Representative graphics and LCD readouts make engine status and AC metering easy to understand, even for untrained personnel. The advanced microprocessor-based EMCP II combined with the Caterpillar Customer Communication Module (CCM) give you the flexibility to remotely monitor and control your Caterpillar packaged generator set
FEATURES UL 508A ● UL 508A Listed RELIABLE, DURABLE, AND ACCURATE ● Environmentally sealed, die-cast aluminum housing isolates and protects electrical components against failure caused by moisture and dirt contamination. ● Rigorous vibration testing ensures panel dependability. ● Maintains metering accuracy from -40° C (-40° F) to 70° C (158° F) ● Electrical noise immunity of 100 volts/meter ● True RMS sensing ensures AC metering accuracy is 0.5% for AC volts and amps. ● The digital, microprocessor-based system eliminates the need for a number of switches, meters, and sending units. That means less wiring and fewer opportunities for mechanical failures. FULL-FEATURED, EASY-TO-READ METERING ● LCD digital readout for: engine oil pressure, coolant temperature, engine rpm, system DC volts, engine running hours, generator AC volts, generator AC amps, and generator frequency ● Eight LED alarms, two programmable to general fault shutdown or general fault alarm

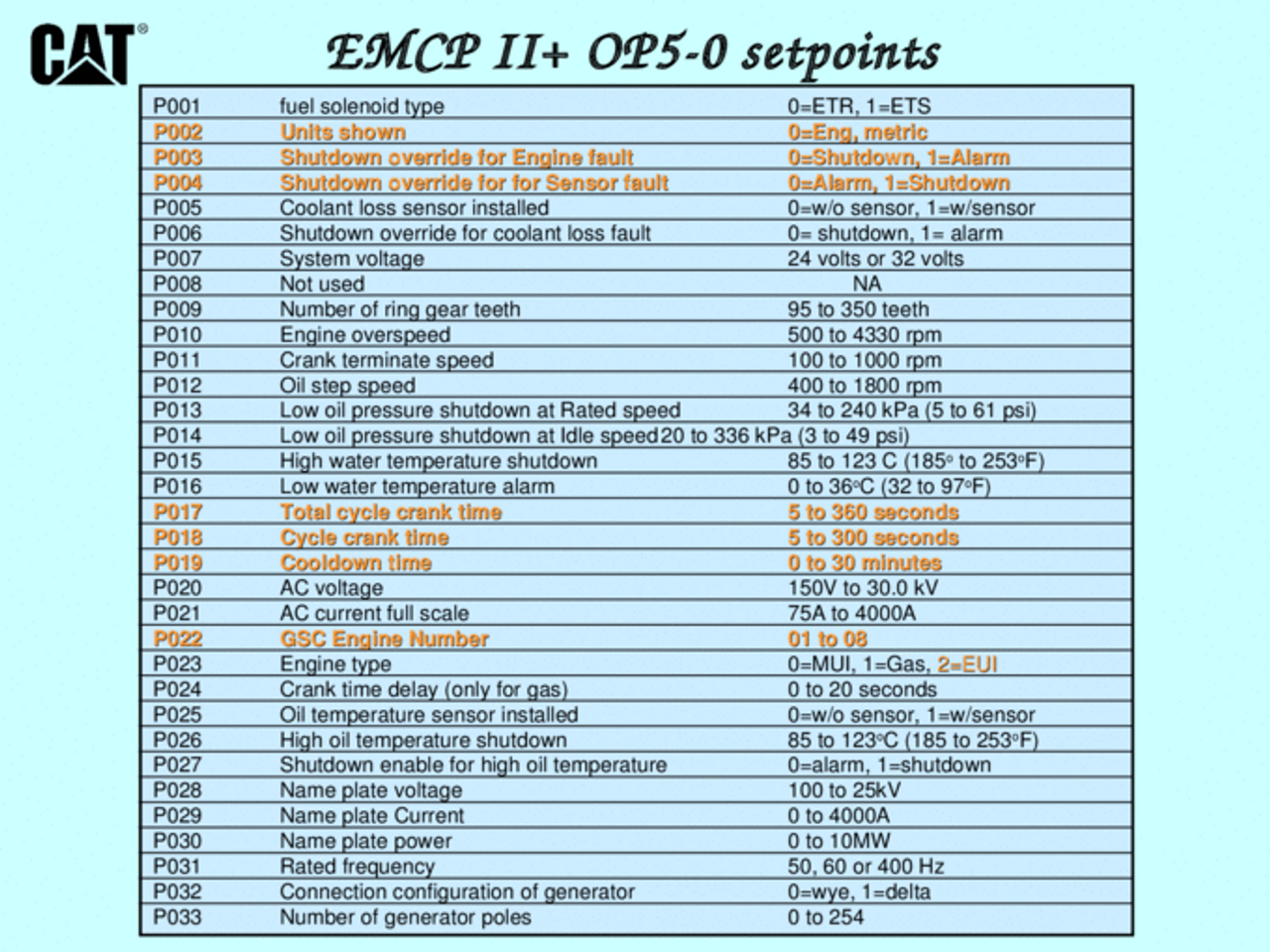

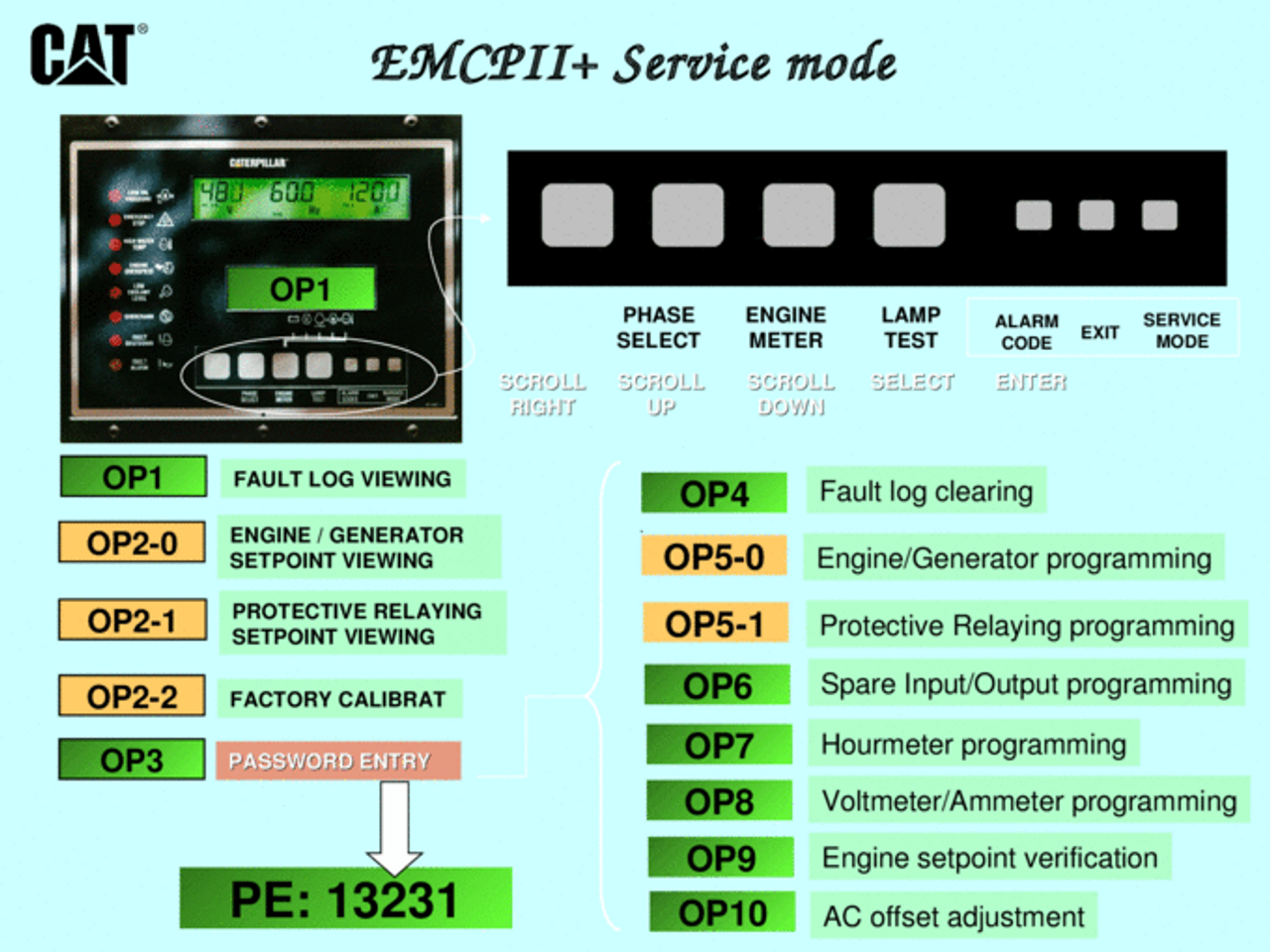

ADVANCED CONTROLS ● Cycle cranking, with adjustable crank/rest period of 1 – 60 seconds ● Three spare inputs/one spare output activate at customer programmed set points ● Expanded remote communication module supported by an open RS-232C architecture — easily interfaced with existing plant systems and equipment SIMPLIFIED SERVICING ● All high voltages have been removed from the generator set status control module for safer panel servicing. ● Self-diagnostic capability pinpoints operational problems in need of attention. ● Using an SAE format, the panel zeros in on the affected system and identifies the component responsible for the failure. ● Key-pad programmable set points REGULATORY APPROVALS ● U.S. sourced control panels meet CSA requirements. ● Larne sourced control panels meet CE requirements.
