Product Description

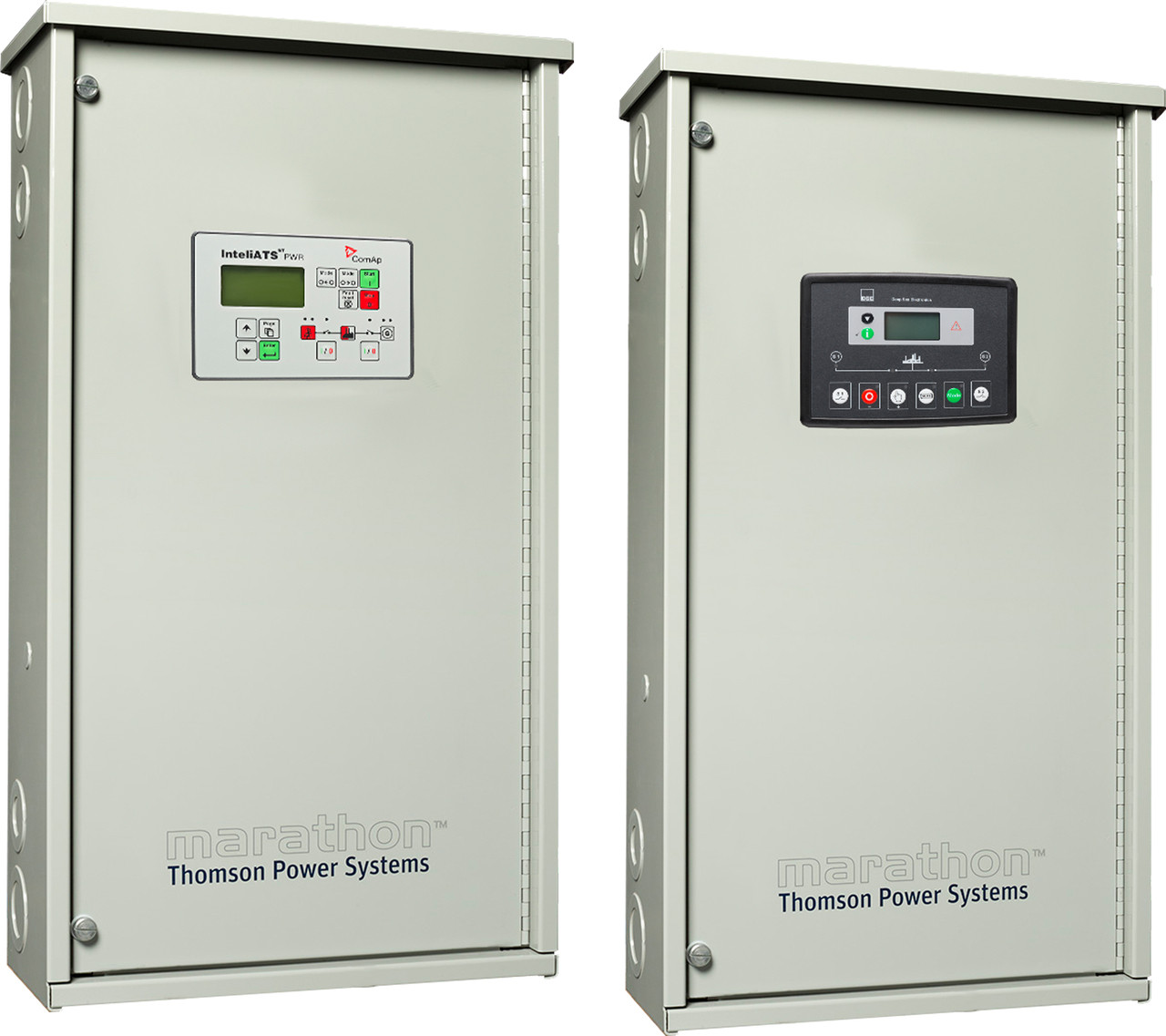

TS 930 – Export Applications
IEC 947-6-1 Equivalent Commercial & Industrial Applications, 125 - 2000 AMP, 3 Pole, 3 Phase, 4 Wire, 480V Max Applications
- Designed to meet the requirements of Non-UL markets (IEC).
- Available from 125 amp to 2000 amp 3 Pole, three phase 480 volt.
- IEC certified Power Contactor Switching Units
- Door mounted ATS Controller, Graphical LCD Display
- Manufactured in compliance with IEC 947-6-1.
Features
Amperage Range: | 125 - 2000 |
Voltage Range: | 120 - 480V |
Poles: | 3 Pole |
Frequency: | 50/60Hz |
Power Distribution: | 3 Phase, 4 wire |
Controller: | Deep See Electronics or ComAp |
Standard Enclosure: | Nema 1 |
Quality Assurance: | ISO 9001 Registered |
Warranty: | 2 Year |
• Normal Operation Status LED Lights: Load on Utility & Load on Generator, Utility & Generator Source Available
• Three Phase Voltage sensing on Utility & Generator Sources
• Generator AC frequency sensing
• Utility under voltage control set point
• Generator Set points: under voltage (adjustable), under frequency (adjustable)
• Front Panel configurable or via Serial/USB port
• Engine warm-up timer (adjustable)
• Utility return timer (adjustable)
• Engine start timer (adjustable)
• Engine cool down timer (adjustable)
• Local utility power fail simulation test pushbutton & LED, front faceplate mounted
• Engine start contact (5A,120/240VAC resistive max.)
• Multilanguage support
• RTC Event and Performance Logs
• In-Phase Transfer with Passive Synch Check
PART NUMBER: | DESCRIPTION: |
TS933A0125A | 125A, 3 Pole, Nema 1 Enclosure |
TS933A0160A | 160A, 3 Pole, Nema 1 Enclosure |
TS933A0200A | 200A, 3 Pole, Nema 1 Enclosure |
TS933A0250A | 250A, 3 Pole, Nema 1 Enclosure |
TS933A0400A | 400A, 3 Pole, Nema 1 Enclosure |
TS933A0630A | 630A, 3 Pole, Nema 1 Enclosure |
TS933A0800A | 800A, 3 Pole, Nema 1 Enclosure |
TS933A1000A | 1000A, 3 Pole, Nema 1 Enclosure |
TS933A1250A | 1250A, 3 Pole, Nema 1 Enclosure |
TS933A1600A | 1600A, 3 Pole, Nema 1 Enclosure |
TS933A2000A | 2000A, 3 Pole, Nema 1 Enclosure |
