Product Description

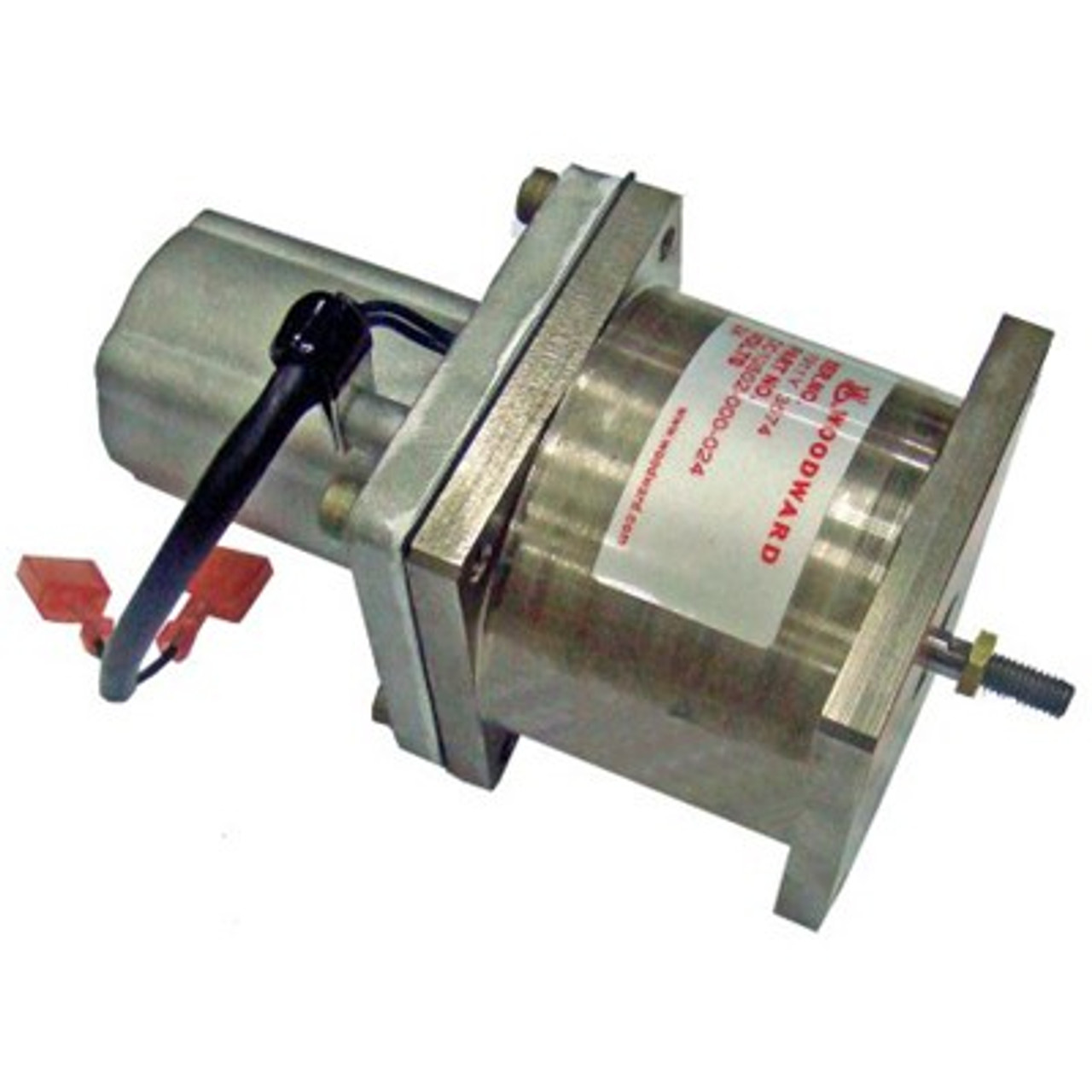

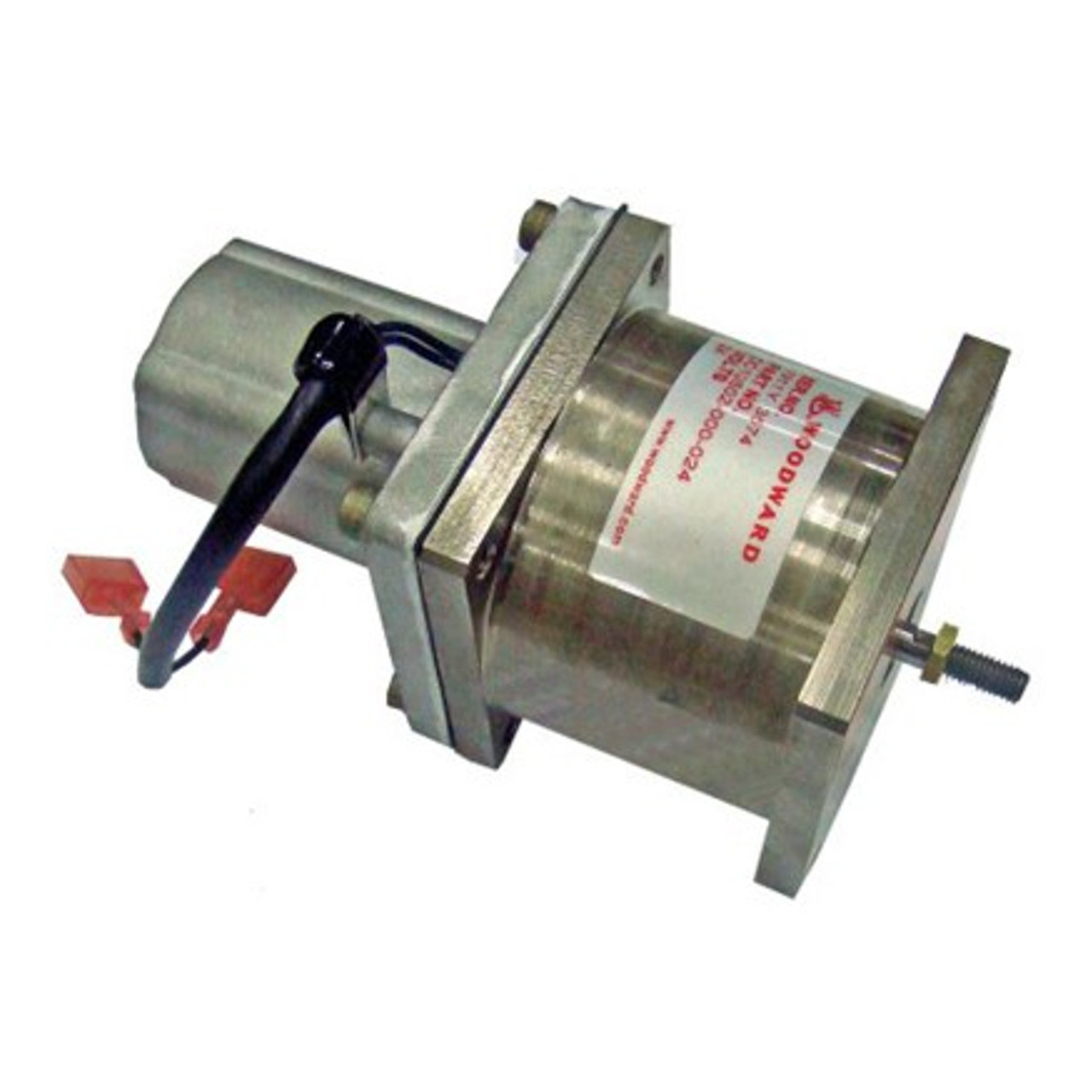

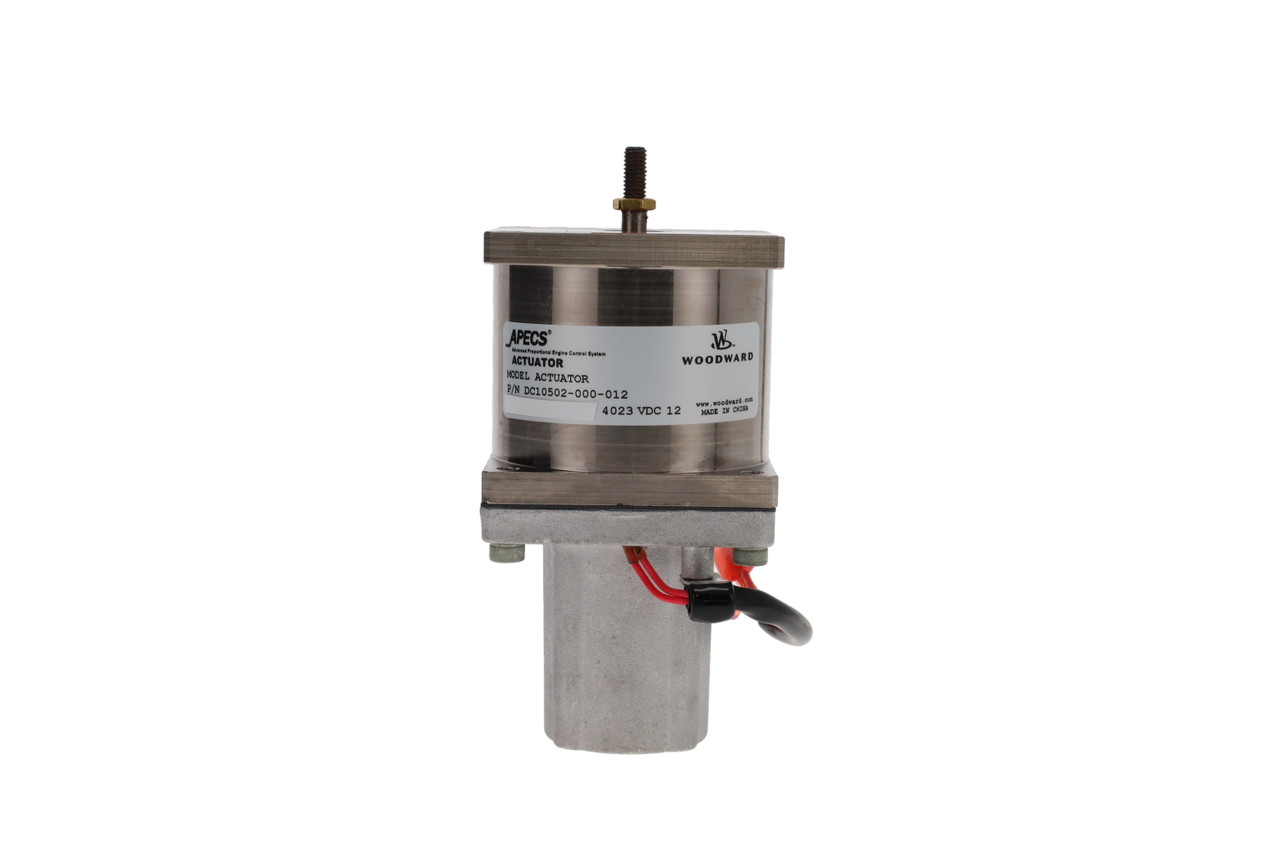

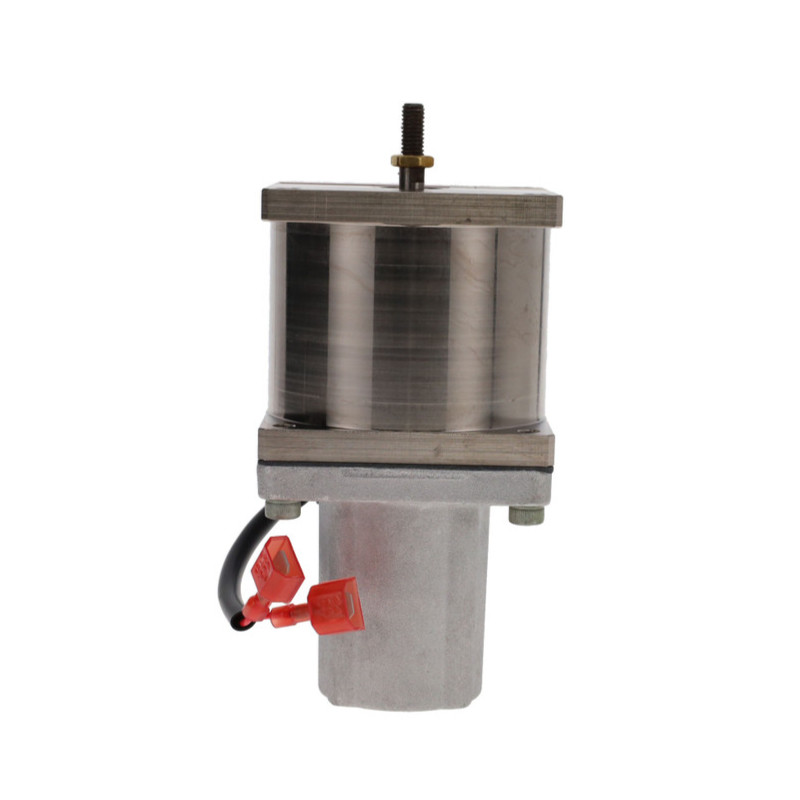

APECS LINEAR ACTUATOR 12 VDC OLD PART# DYNC-10502-000-0-12 / NEW PART# DC10502-000-012
DYNA 2500 (work capacity 0.50 ft-lb, STANDARD SHAFT SEAL & LINEAR BALL BUSHINGS, OUTPUT TRAVEL 0.775-0825"/19.68-20.95 mm)
Woodward DC10502-000-012, DYNA 2500 Linear Actuator, 12VDC
DYNA 2500 Linear Actuator, 12 VDC or 24 VDC, S2 Switch Position OFF, 250 - 9500 Hz Speed Range, -40°F to + 180°F Ambient Operating Temperature, 1.4 lb. (635 g) Features: • All electric • All engine compatible • Generator paralleling option • Temperature stable • High reliability • Mounts in any position • Better than ± 0.5% over temperatures of –40°F to +167°F (-40°C to +75°C) temperature stability • Withstands the following vibration without failure or degraded performance - 0.06 inch double amplitude at 5 to 18 Hz, 1 G at 18 to 30 Hz, 0.02 inch double amplitude at 30 to 48 Hz, 2.5 G's at 48 to 70 Hz • Heavy conformal coating for moisture and vibration protection circuit boards
