Product Description

LS-5 V2 Multiple Circuit Breaker Control & Protection

Woodward’s LS-5 Series are synchronizer controllers with integrated mains decoupling and protection features. The applications range from independent synch check relay to complex power management relay with multiple utility feeds, bus tie breakers and group breakers in combination with Woodward’s easYgen-3400XT/3500XT equipped genset controllers.

Benefits Include

• Compact solution for complex power management applications
• Plug-n-play with easYgen-3000XT family genset controls. Facilitates OEMs to apply genset control at factory and LS-5 at point-of-application
• Minimize the wiring effort and cost as no hard wiring between the controls, a single CAN bus handles the entire communication
• Purpose built application modes to shorten the commissioning time
• Mains decoupling and  grid code compliance
• Enable your genset to speak your local language at the touch of a button with 11 built-in languages

NEW: The LS-5 Series is available in two capabilities

• The LS-5x1 controls one breaker and can be applied either to a utility breaker or to a bus-tie breaker
• The LS-5x2 controls two breakers and can be applied where load bus is served by a utility breaker and a group breaker

 The LS-5 Series is available in two mounting styles

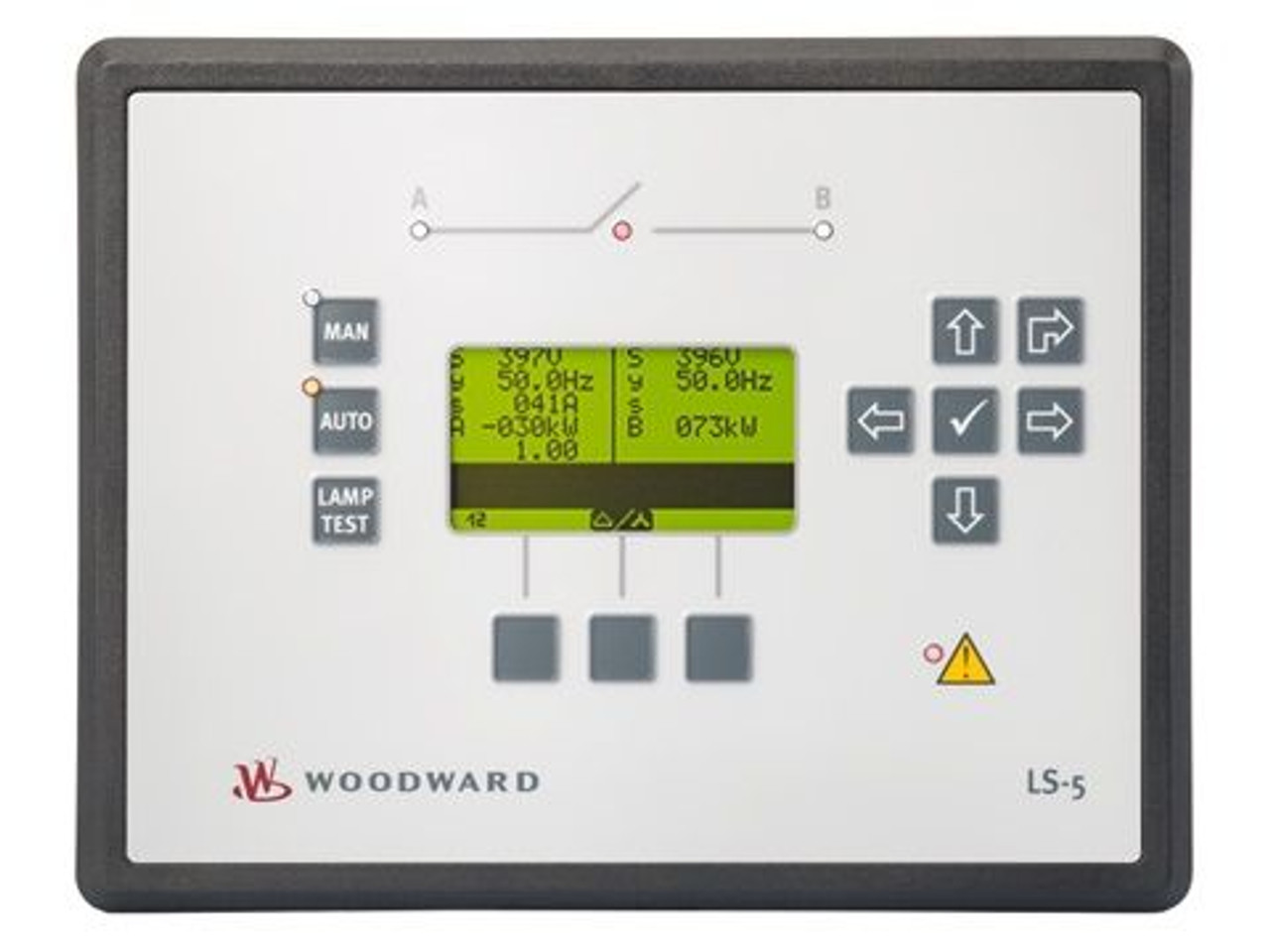

• The LS-52x with a plastic housing and graphic LCD display is designed to be mounted on the cabinet’s front door.
• The LS-51x with an aluminum powder coated housing without display is designed to be back panel mounted.
