Product Description

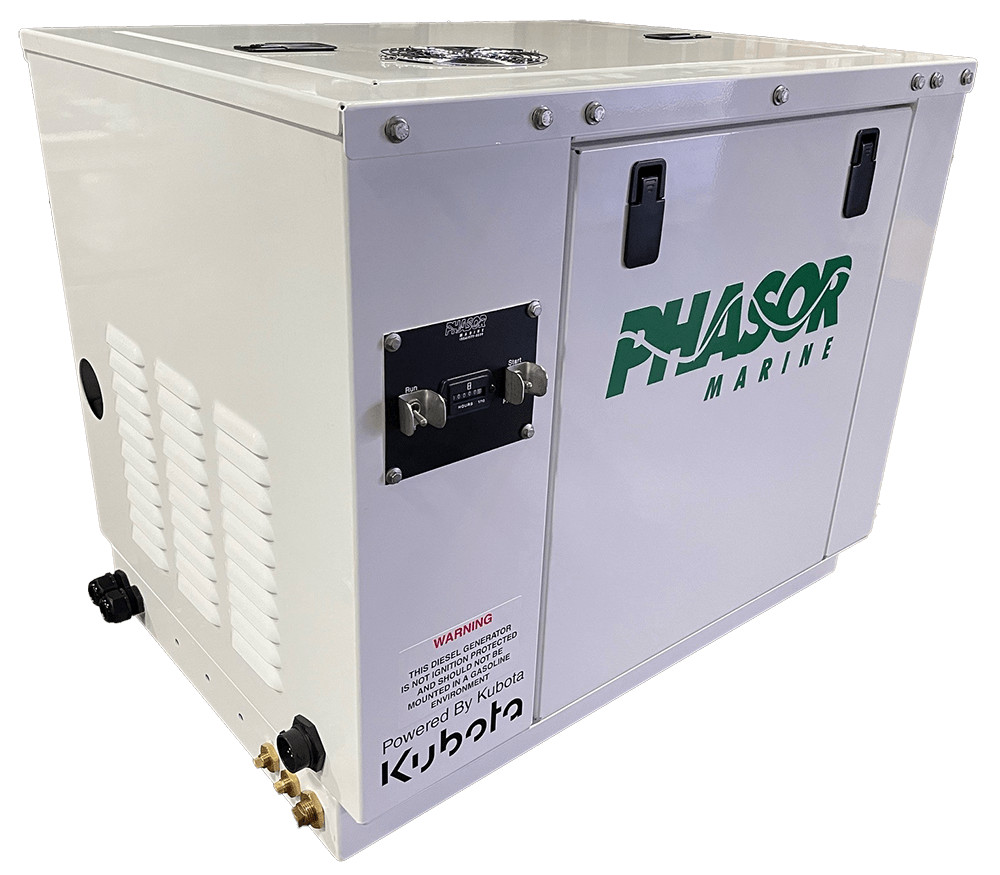

MARINE GEN SETS
MODEL KK3-12.5KW KEEL COOLED / DRY EXHAUST
ENGINE KUBOTA V1505
CYLINDERS THREE (4)
CUBIC INCH DISPLAMENT 91
BORE X STROKE 3.07" x 3.09"
ALTERNATOR END / GENERATOR NEWAGE / STAMFORD PIO44F1J SINGLE PHASE 60HZ
OUTPUT (VOLT) 120/240 @1800 RPM
OUTPUT (AMPS) 104 / 52
OUTPUT (WATTS) 12,500
EXHAUST DIA. 2.0" FLANGE FEMALE NPT
FUEL INLET 5/16"
RETURN LINE 3/16"
Load bank tested and ISO9001 certified
100% Made in USA and Europe (0% China)
STANDARD EQUIPMENT
12 VOLT ELECTRIC STARTER
12 VOLT BATTERY CHARGING ALTERNATOR
AUTOMATIC ENGINE SHUTDOWN FOR LOW OIL PRESSURE / HIGH COOLANT TEMPERATURE
FUEL FILTER
FUEL TRANSFER PUMP
AIR SILENCER INTAKE / CLEANER
HEAVY DUTY STEEL FRAME
HIGH AMBIENT RADIATOR COOLING
SINGLE BEARING GENERATOR
BRUSHLESS EXCITER
UNIT MOUNTED SOLID STATE VOLTAGE REGULATOR
MUFFLER SHIPPED LOOSE
TOGGLE SWITCH START / PREHEAT / HOURMETER
AVAILABLE ACCESSORIES AND OPTIONS:
STEEL OR ALUMINUM WEATHER PROOF, SOUND ATTENUATED ENCLOSURES
FUEL TANKS FROM 50 TO 10,000 GAL
UL1008 LISTED, AUTOMATIC TRANSFER SWITCHES FROM 50 TO 3000 AMP
D.O.T. COMPLIANT HEAVY DUTY ROAD TRAILERS FROM 3000 TO 30,000 LBS
AUTOMATIC BATTERY CHARGERS, ENGIE PREHEATERS, REOTE ANNUNCIATORS AND MANY MORE
