Product Description
RESIDENTIAL & COMMERCIAL GEN SETS

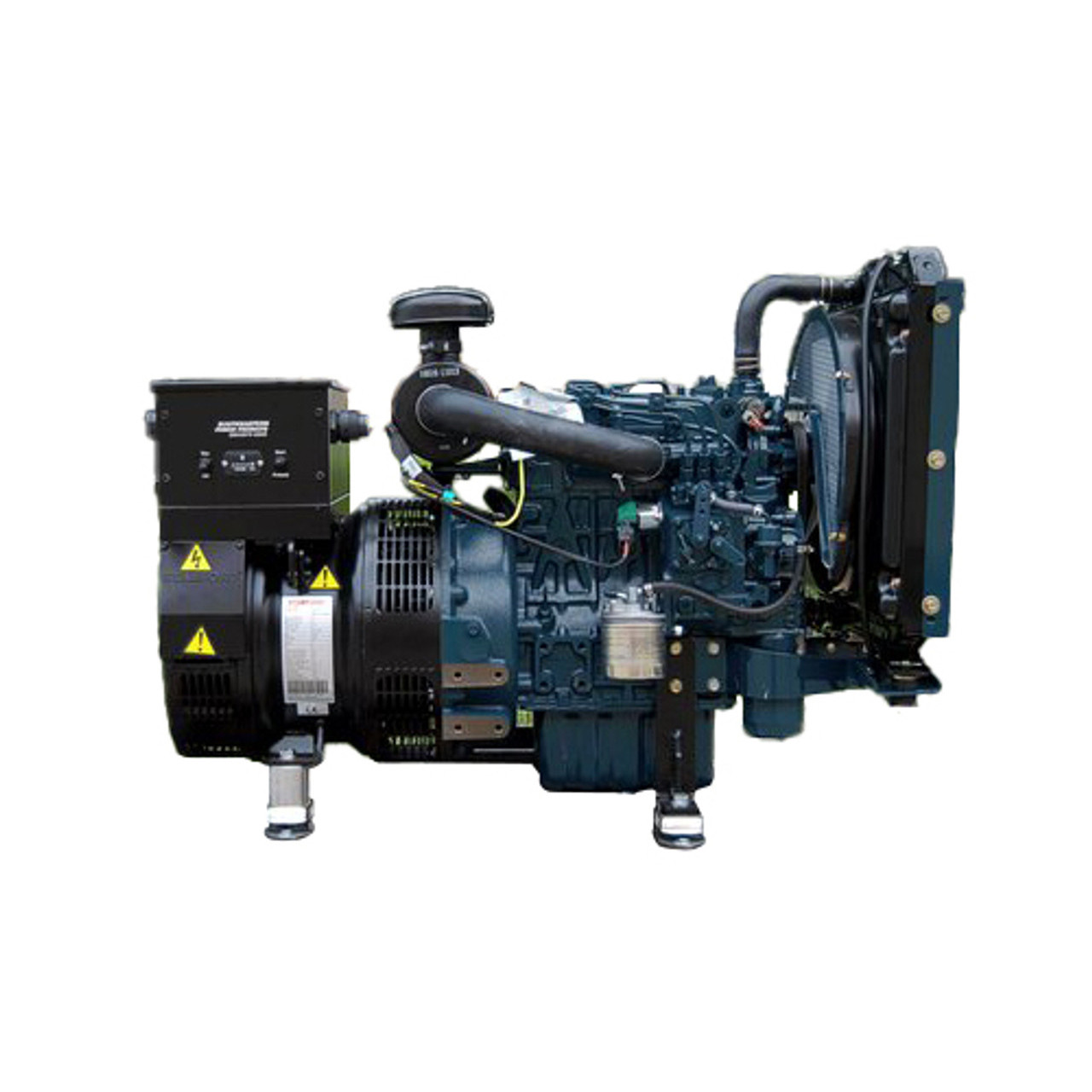

MODEL: SEP3-9.5KW
ENGINE: KUBOTA D1105
CYLINDERS: THREE (3)
CUBIC INCH DISPLAMENT: 68.5
BORE X STROKE: 3.07" x 3.09"
ALTERNATOR END / GENERATOR NEWAGE / STAMFORD PIO44E1J 60HZ
OUTPUT (VOLT): 120/240 @1800 RPM
OUTPUT (AMPS): 79.0/39 SINGLE PHASE
OUTPUT (WATTS): 9,500
FUEL INLET: 5/16
RETURN LINE: 3/16
Load bank tested and ISO9001 certified
100% Made in USA and Europe (0% China)
STANDARD EQUIPMENT
12 VOLT ELECTRIC STARTER
12 VOLT BATTERY CHARGING ALTERNATOR
AUTOMATIC ENGINE SHUTDOWN FOR LOW OIL PRESSURE / HIGH COOLANT TEMPERATURE
FUEL FILTER
FUEL TRANSFER PUMP
AIR SILENCER INTAKE / CLEANER
HEAVY DUTY STEEL FRAME
HIGH AMBIENT RADIATOR COOLING
SINGLE BEARING GENERATOR
BRUSHLESS EXCITER
UNIT MOUNTED SOLID STATE VOLTAGE REGULATOR
MUFFLER SHIPPED LOOSE
TOGGLE SWITCH START / PREHEAT / HOURMETER
AVAILABLE ACCESSORIES AND OPTIONS:

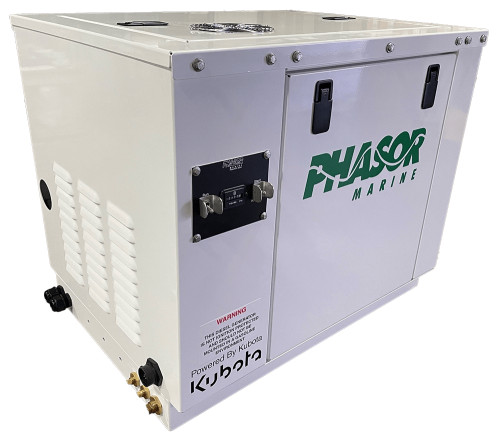

STEEL OR ALUMINUM WEATHER PROOF, SOUND ATTENUATED ENCLOSURES
UL142 LISTED, DOUBLE WALL FUEL TANKS FROM 50 TO 10,000 GAL
UL1008 LISTED, AUTOMATIC TRANSFER SWITCHES FROM 50 TO 3000 AMP
D.O.T. COMPLIANT HEAVY DUTY ROAD TRAILERS FROM 3000 TO 30,000 LBS
AUTOMATIC BATTERY CHARGERS, ENGINE PREHEATERS, REMOTE ANNUNCIATORS AND MANY MORE
