Product Description

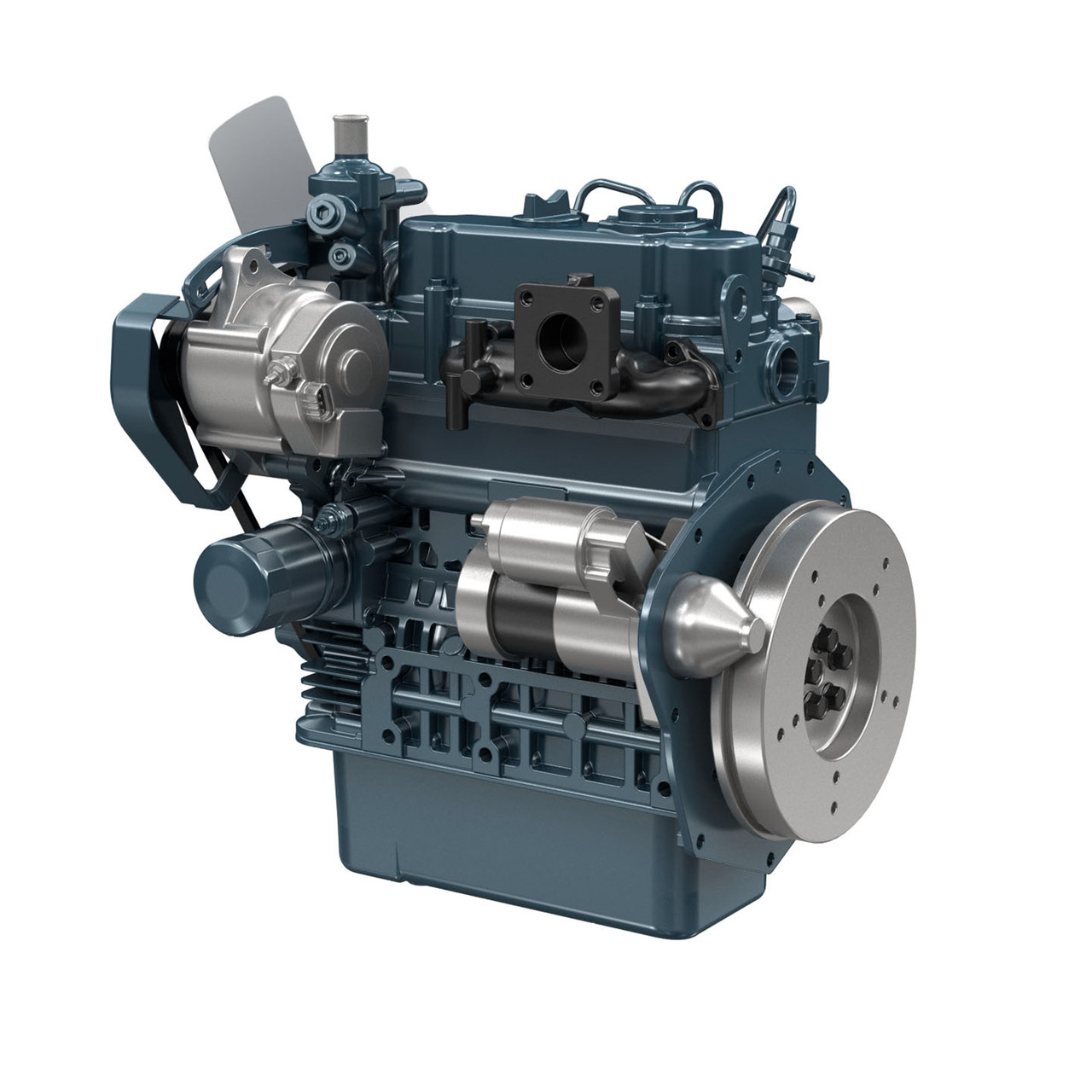

D902-E4B-KEA-1 ENGINE (3200/3600 RPM)
ENGINE SPECIFICATIONS
Gross Intermittent kW / HP: 16.1 / 21.6
Maximum Speed RPM: 3200
Cylinders: IDI /Naturally Aspirated
Combustion / Intake System: Tier 4
Gross Intermittent kW / HP: 16.1 / 21.6
Kubota D902-E4B O/H PARTS
QTY ITEM# DESCRIPTION
03 1J094-21770 PISTON KIT STD
01 1G962-23755 KIT METAL
01 1G960-99365 KIT GASKET, LOWER
01 1G823-99354 KIT GASKET, UPPER
03 1G687-13110 VALVE, INLET
03 1G687-13120 VALVE, EXH
06 14601-13240 SPRING, VALVE
06 14601-13980 COLLET, VALVE SPRING
06 16851-13280 CAP, VALVE
01 1E051-73036 WATER PUMP
01 19434-73015 THERMOSTAT
03 1G687-22010 ASSY ROD, CONNECTING
