Product Description

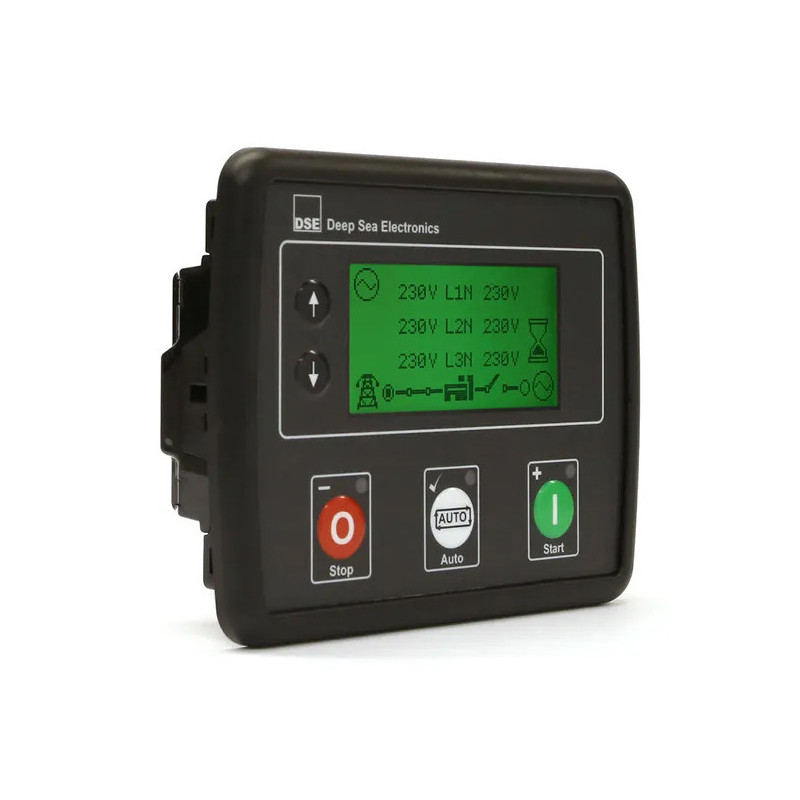

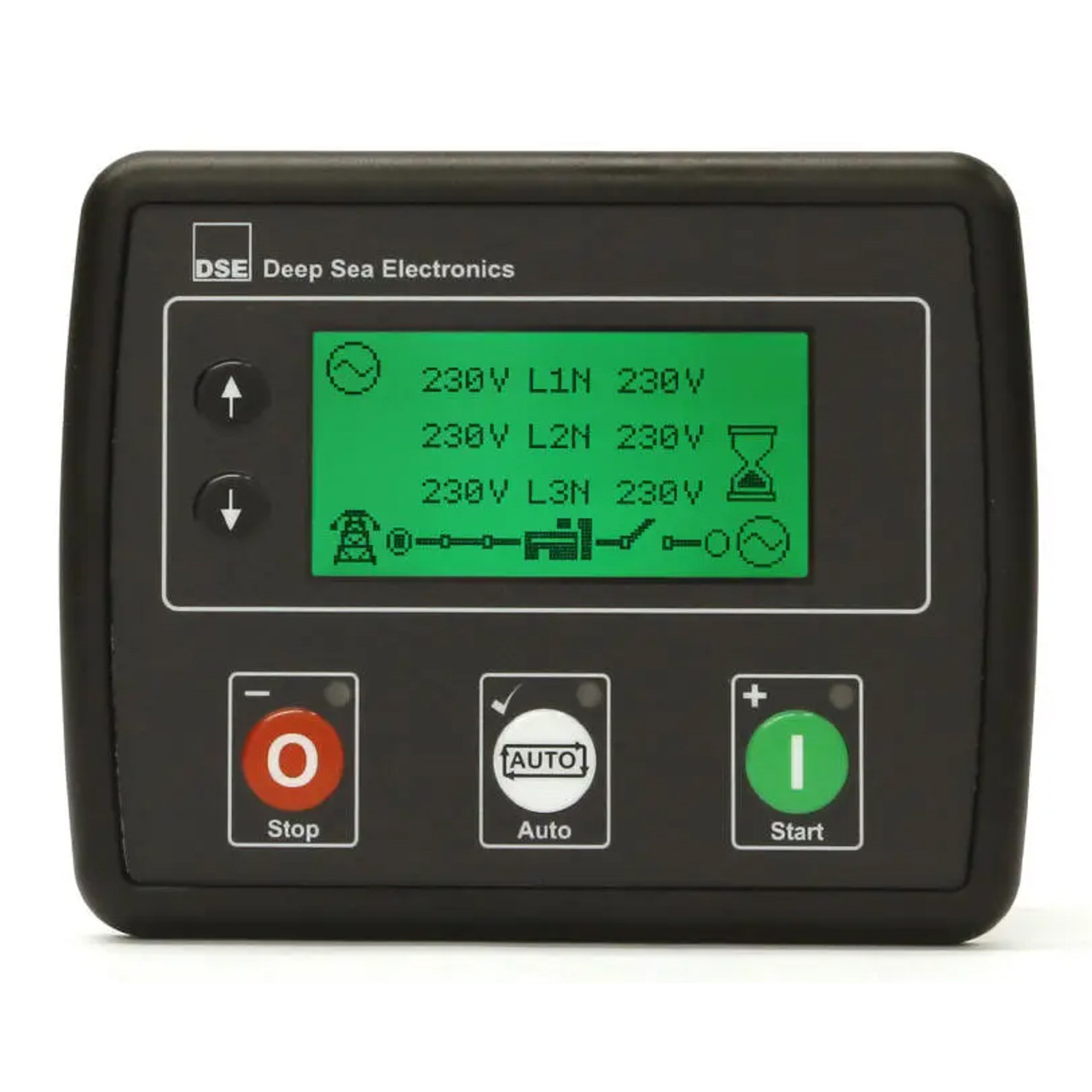

Deep Sea DSE4520 Auto Mains (Utility) Failure Control Modules
The DSE4520 is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range of features within a compact enclosure.
MAINS (UTILITY)
VOLTAGE RANGE: 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE: 3.5 Hz to 75 Hz
GENERATORVOLTAGE RANGE: 15 V to 415 V AC (Ph to N) 26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE: 3.5 Hz to 75 Hz
OUTPUTS
OUTPUT A (FUEL): 10 A short term, 5 A continuous, at supply voltage
OUTPUT B (START): 10 A short term, 5 A continuous, at supply voltage
OUTPUT A (FUEL): 10 A short term, 5 A continuous, at supply voltage
OUTPUT B (START): 10 A short term, 5 A continuous, at supply voltage
AUXILIARY OUTPUTS C, D, E & F: 2 A DC at supply voltage
