Product Description

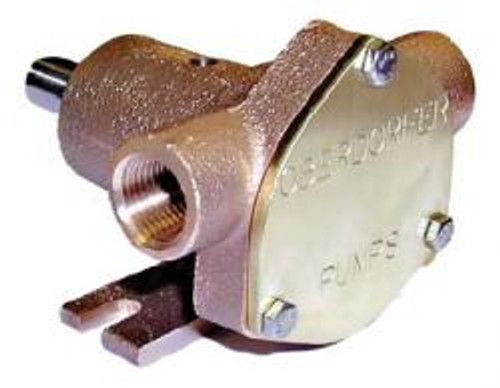

PHASOR MARINE GENERATOR PART - LP1-3.5KW OB N200M RAW WATER PUMP
| FEATURES | |
| Pump Body: | Bronze |
| Ports: | 3/8" NPT |
| Flow: | 5.7 GPM Max |
| Pressure: | 22 PSI Max, 50 feet of head |
| Impeller: | Neoprene Standard |
| Shaft Seal: | Mechanical Carbon Ring, Ceramic Face Main Pump Seal Standard, Optional Buna N Lip Seal. |
| Shaft: | Stainless Steel Shaft 12mm |
| Motor / Drive: | Either direct drive with flexible coupling or pulley drive can be used. We have many motor options available and can assemble for you. |
| APPLICATIONS / CHARACTERISTICS | |
|
BRONZE PEDESTAL RUBBER IMPELLER PUMP For: Engine Cooling, Mixing, Bilge, Liquid Circulation, Water Circulation, Sump Drainage, Ballast Transfer, Wash-Down. Suction lift of 15 feet is possible when impeller is wet. Machined-in Cam. Two Sealed Ball Bearings Spaced for Maximum Load Ability. Direction of shaft rotation determines inlet and outlet ports. |
|
