Product Description

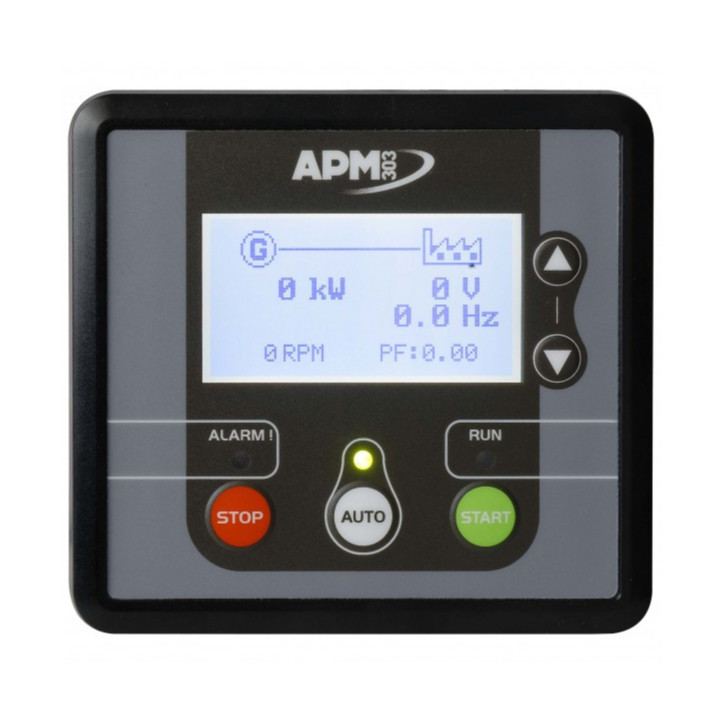

SDMO APM303 Digital Control Panel, P/N 31613629300
The APM 303 is a instrumentation and control system for generating sets. It can be found in the SDMO range for generating sets under 300 kVA
Key Benefits – APM303
- Entry level control panel for manual and automatic generator control
- LCD screen for basic engine & alternator operational parameters
- LED alarm and fault indication
* 12V and 24V operation * No ECU communication * Options available * Modbus function * Configurable via PC and screen * AUTO & MAN modes
The advantages of the APM303:
→ Easy to use → Based on the Nexys → Supervision → Starter and solenoid valve cut off by Emergency Stop → Simple Man Machine Interface → Post-heating for cold countries → Same central console as the Nexys → Stack of 12 events → Retrofit adaptable for Nexys/APM303 → Front of the APM303 controller in IP54
Nexys / APM 303 comparison:
| APM 303 | NEXYS | |
| Power supply voltage | 12/24 | 12 |
| Inputs/outputs | 7/5(6/3 configurable) | 8/7 (all fixed) |
| Electrical measurements | As standard: 3 * U and 3 * l | Optional: 3 * U and 3 * l |
| Analog measurements |
As standard: oil pressure, coolant temperature, fuel level |
Optional: oil pressure, coolant temperature, fuel level |
| Modbus communication | As standard | Not included |
| CAN bus management | External display | External display |
| Configuration update | Via PC tool and screen | Via screen |
| Dimensions | 108 x 108 (93 x 93 for the cutout) | 310*150 |
| Electrical protection |
Min and Max Voltage and Frequency, Short circuit, Overload |
Not included |
| Event stack | 12 | Not included |
Front panel:
Rear panel: connectors
Screens:
