Product Description
SDMO APM303 Digital Control Panel, RETROFIT KIT P/N 31613621303NE
SDMO APM303 RETRO FIT TO NEXYS CONTROL KIT INCLUDES:
01x 31613629300 APM303 CONTROLLER

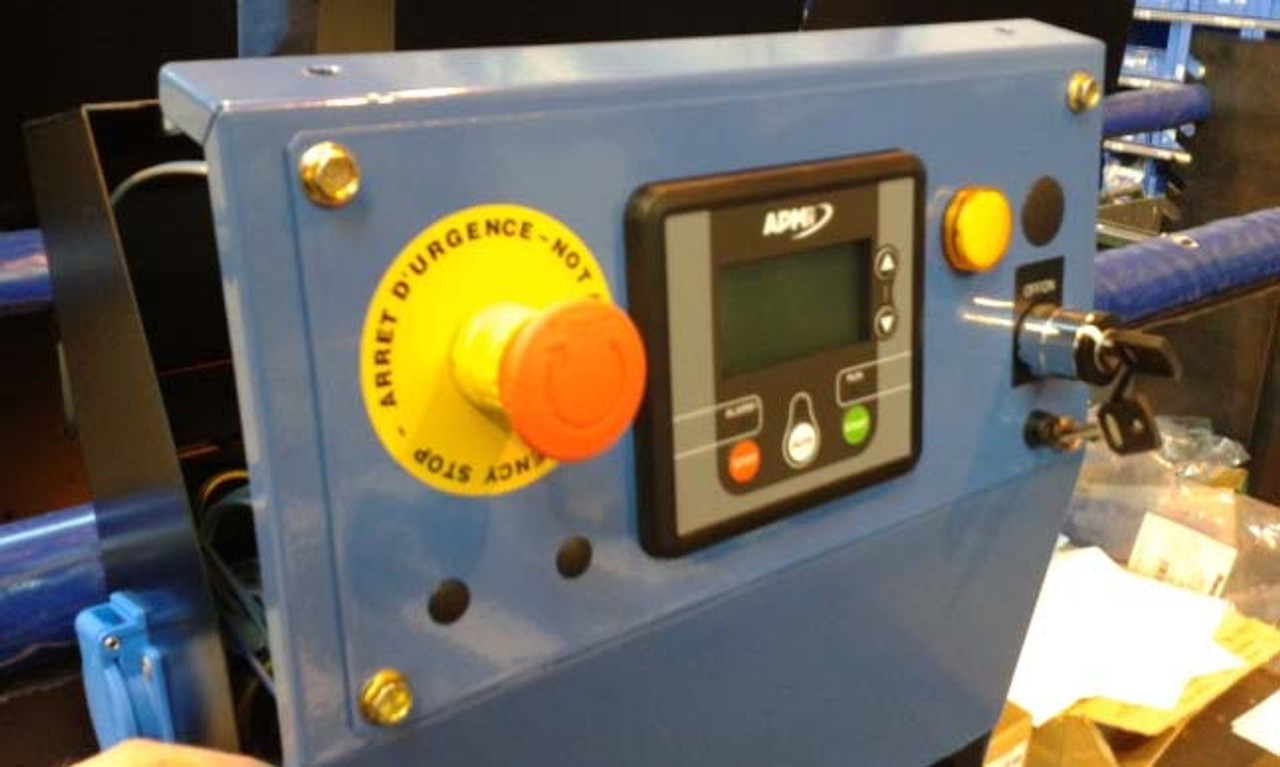

01x GP41234888 APM303 TO NEXYS BACK PLATE WITH E-STOP AND KEY SWITCH
01x 31607712001 APM303 HARNESS
01x 31613621501NE VOLTAGE REFERANCE WIRING HARNESS ASSEMBLY

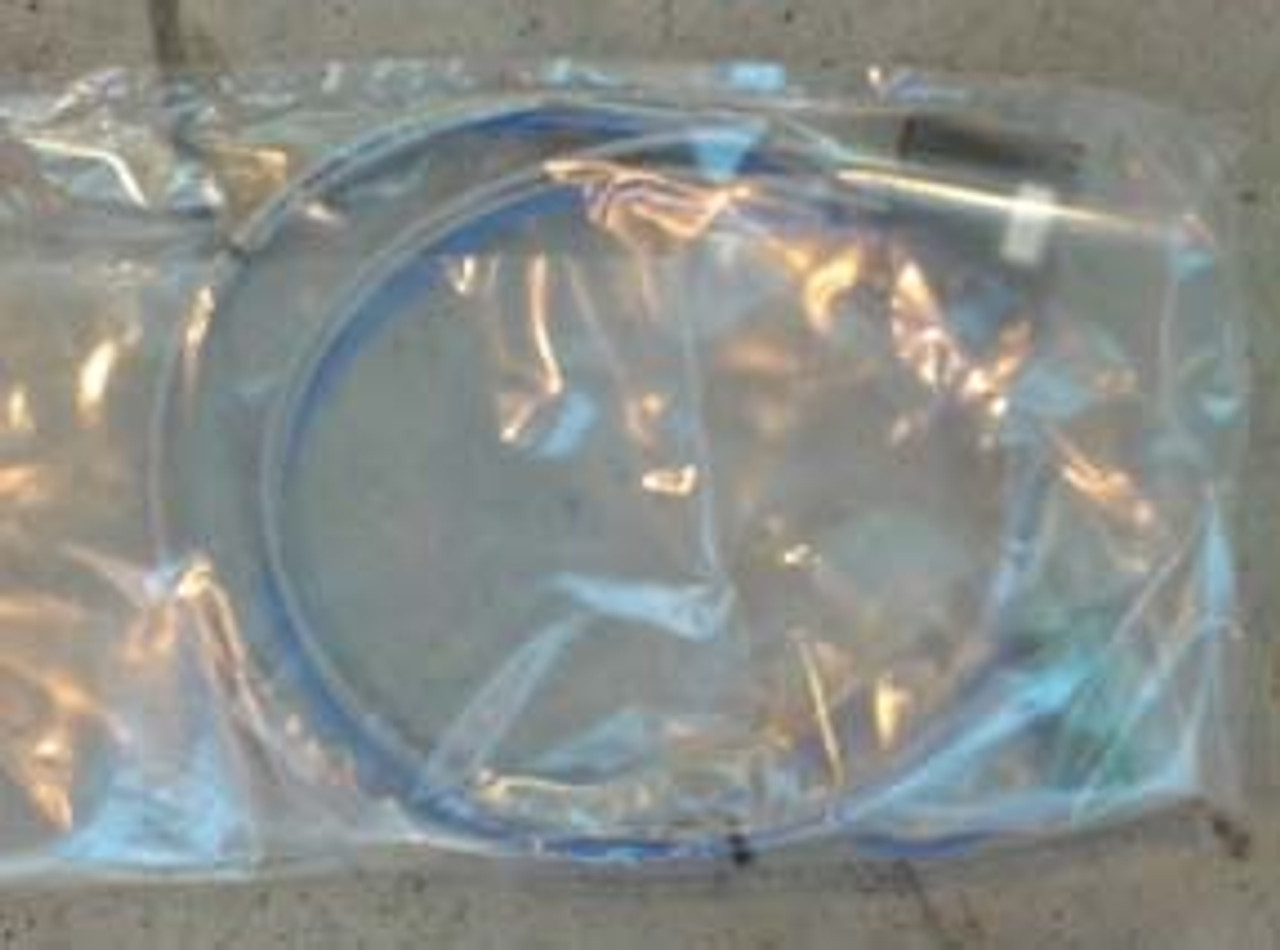

01x 31607717301 CHARGING ALTERNATOR APM303 INPUT INHIBITION WIRING HARNESS (MITSUBISHI/LOMBARDINI ENGINES)
01x 31607718701 CHARGING ALTERNATOR APM303 INPUT INHIBITION WIRING HARNESS (LOMBARDINI KDW1003/1404)
01x 31614335401NE CHARGING ALTERNATOR APM303 ALARM EXCITATION WIRING HARNESS (JOHN DEERE)
* This controller will be programmed to your generator specs. When order you must provide the following specs:
GENSET MODEL AND SERIAL NUMBERS?
GENSET VOLTAGE?
GENSET PHASES?
GENSET CT’S ?
Introduction:
The APM 303 is a instrumentation and control system for generating sets. It can be found in the SDMO range for generating sets under 300 kVA.
* 12V and 24V operation * No ECU communication * Options available * Modbus function * Configurable via PC and screen * AUTO & MAN modes
The advantages of the APM303:
→ Easy to use → Based on the Nexys → Supervision → Starter and solenoid valve cut off by Emergency Stop → Simple Man Machine Interface → Post-heating for cold countries → Same central console as the Nexys → Stack of 12 events → Retrofit adaptable for Nexys/APM303 → Front of the APM303 controller in IP54
Nexys/APM 303 comparison:
| APM 303 | NEXYS | |
| Power supply voltage | 12/24 | 12 |
| Inputs/outputs | 7/5(6/3 configurable) | 8/7 (all fixed) |
| Electrical measurements | As standard: 3 * U and 3 * l | Optional: 3 * U and 3 * l |
| Analog measurements |
As standard: oil pressure, coolant temperature, fuel level |
Optional: oil pressure, coolant temperature, fuel level |
| Modbus communication | As standard | Not included |
| CAN bus management | External display | External display |
| Configuration update | Via PC tool and screen | Via screen |
| Dimensions | 108 x 108 (93 x 93 for the cutout) | 310*150 |
| Electrical protection |
Min and Max Voltage and Frequency, Short circuit, Overload |
Not included |
| Event stack | 12 | Not included |
Front panel:
Rear panel: connectors
Screens:
