Product Description

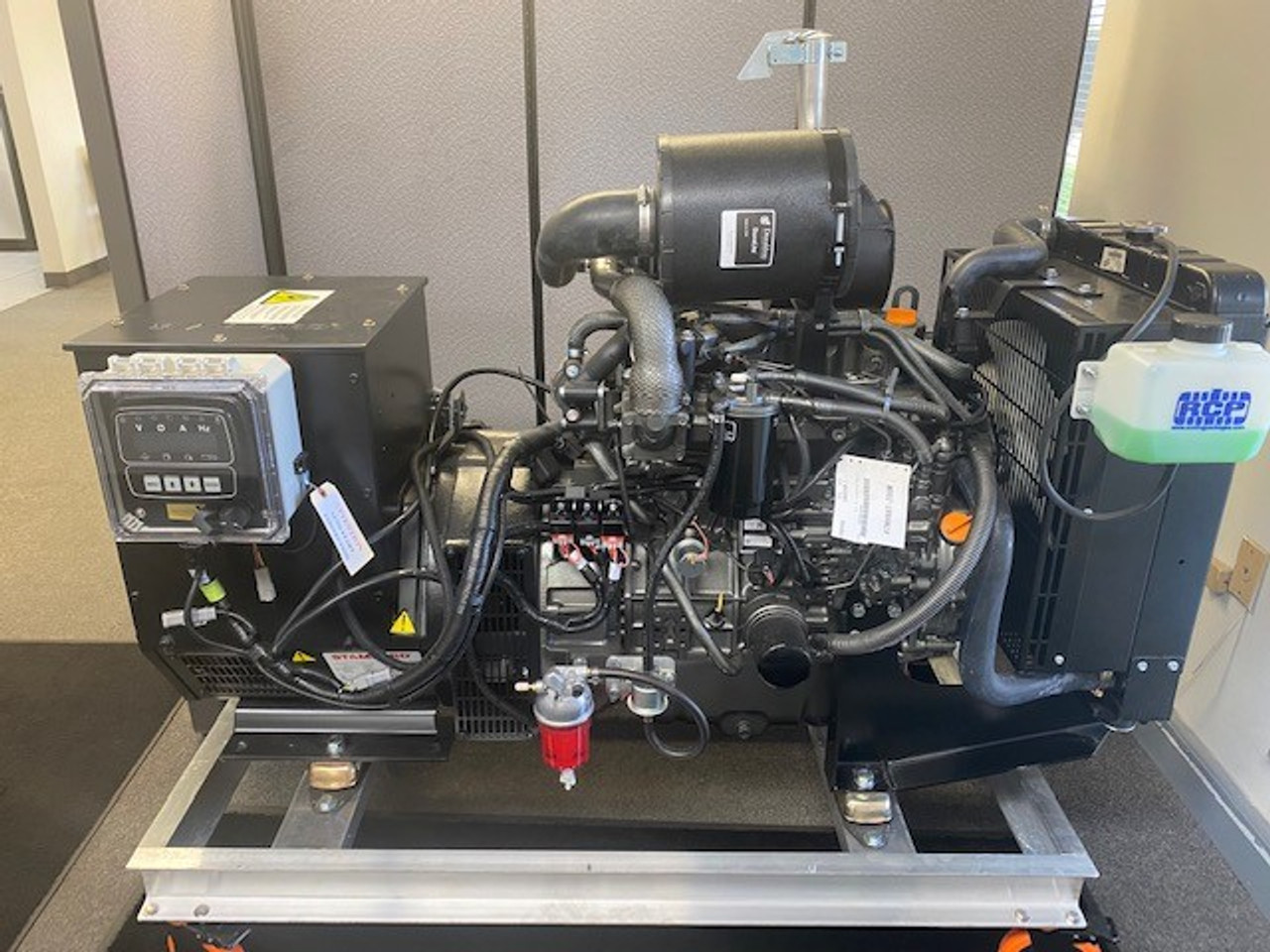

Yanmar 45 kW Radiator cooled Diesel Generator features a Yanmar 4TNV98T Marine Spec Diesel Engine.
Specifications:

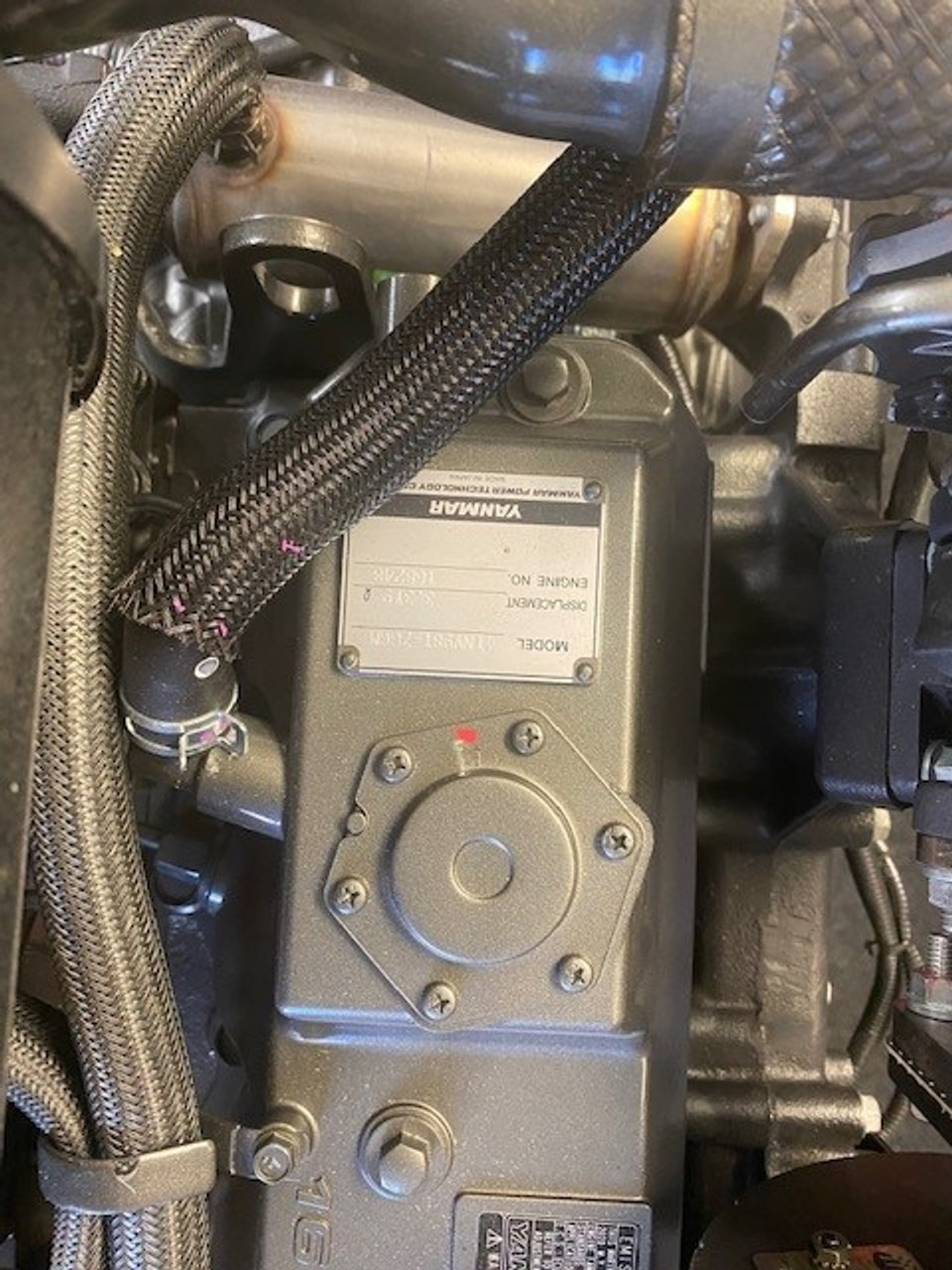

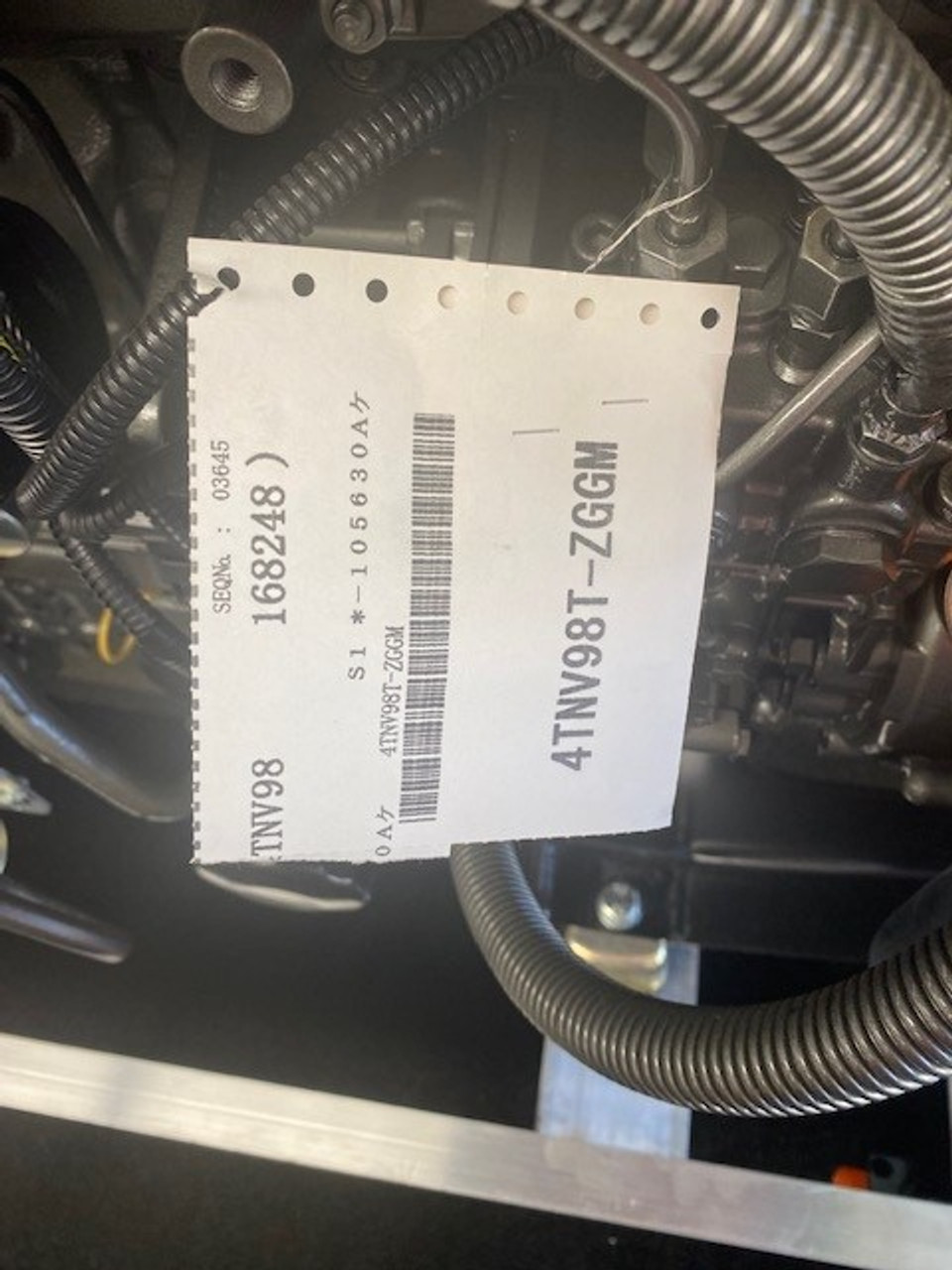

Yanmar Model 4TNV98T-ZGGM
Cylinders 4
Cu. In. Displacement 202.5
Bore x Stroke 98 x 110 (in.)
HP@1,800 RPM 67
Emission Regulations Tier 3
Cooling System Keel Cooled / Dry Exhaust
Dimensions (LxWxH) 57 x 30 x 44.5 (in.)
Weight (lbs.) 1455
Starting System 12-Volt DC
Fuel Line Dia. 5/16 in.
Return Line Dia. 5/16 in.

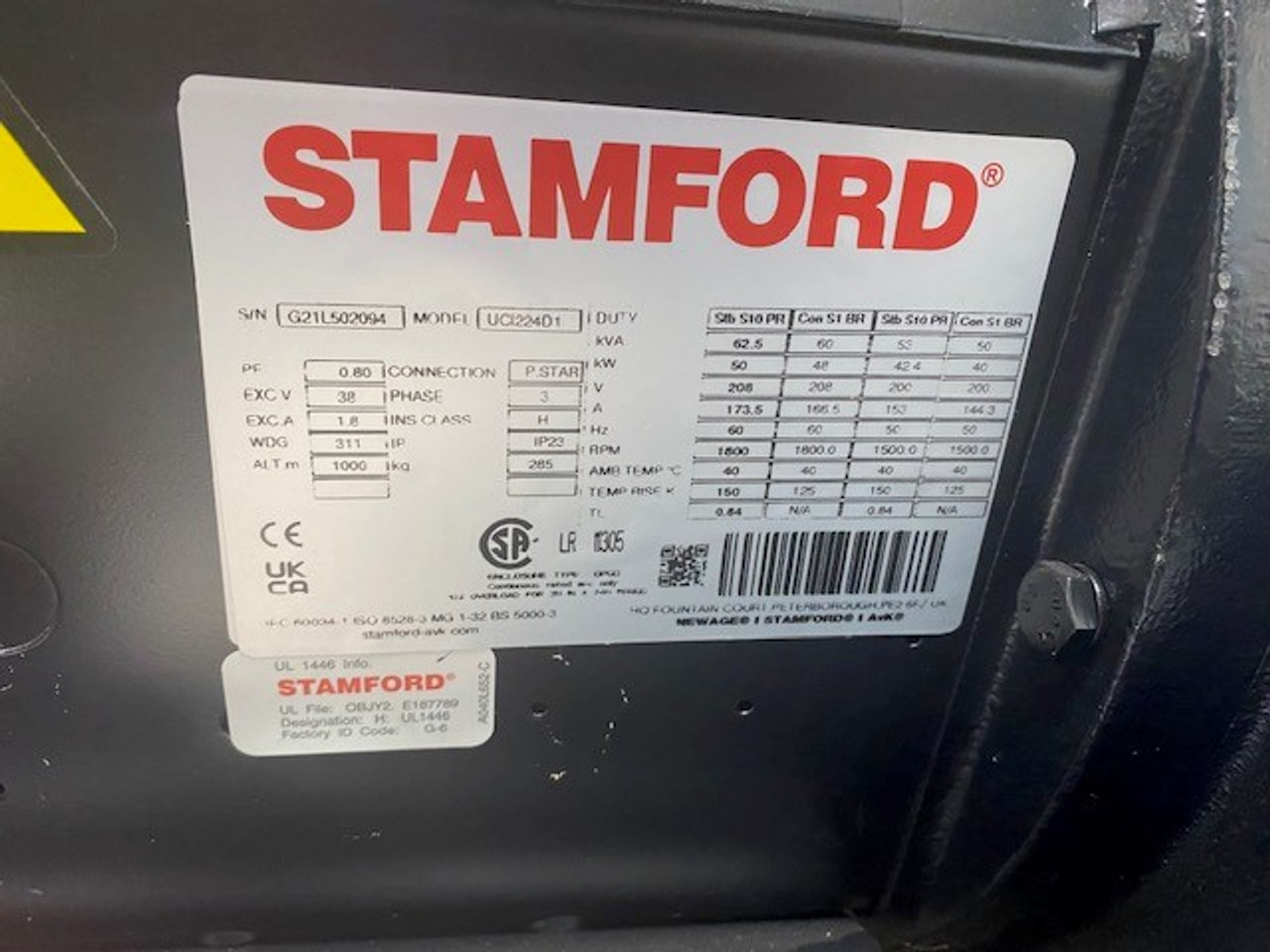

Generator Stamford / Newage
Frequency 60 Hertz
Output (volts) 208V
Output (amps) 125
Output (watts) 45,000
Standard Features:
• 12 DC Start / Charging
• Automatic low oil pressure and
high coolant temperature shutdown
• Electric fuel pump
• Fuel filter
• Heavy duty steel mounting frame
• 4-point isolation motor mounts
• Air intake cleaner / silencer
• Brushless excitor

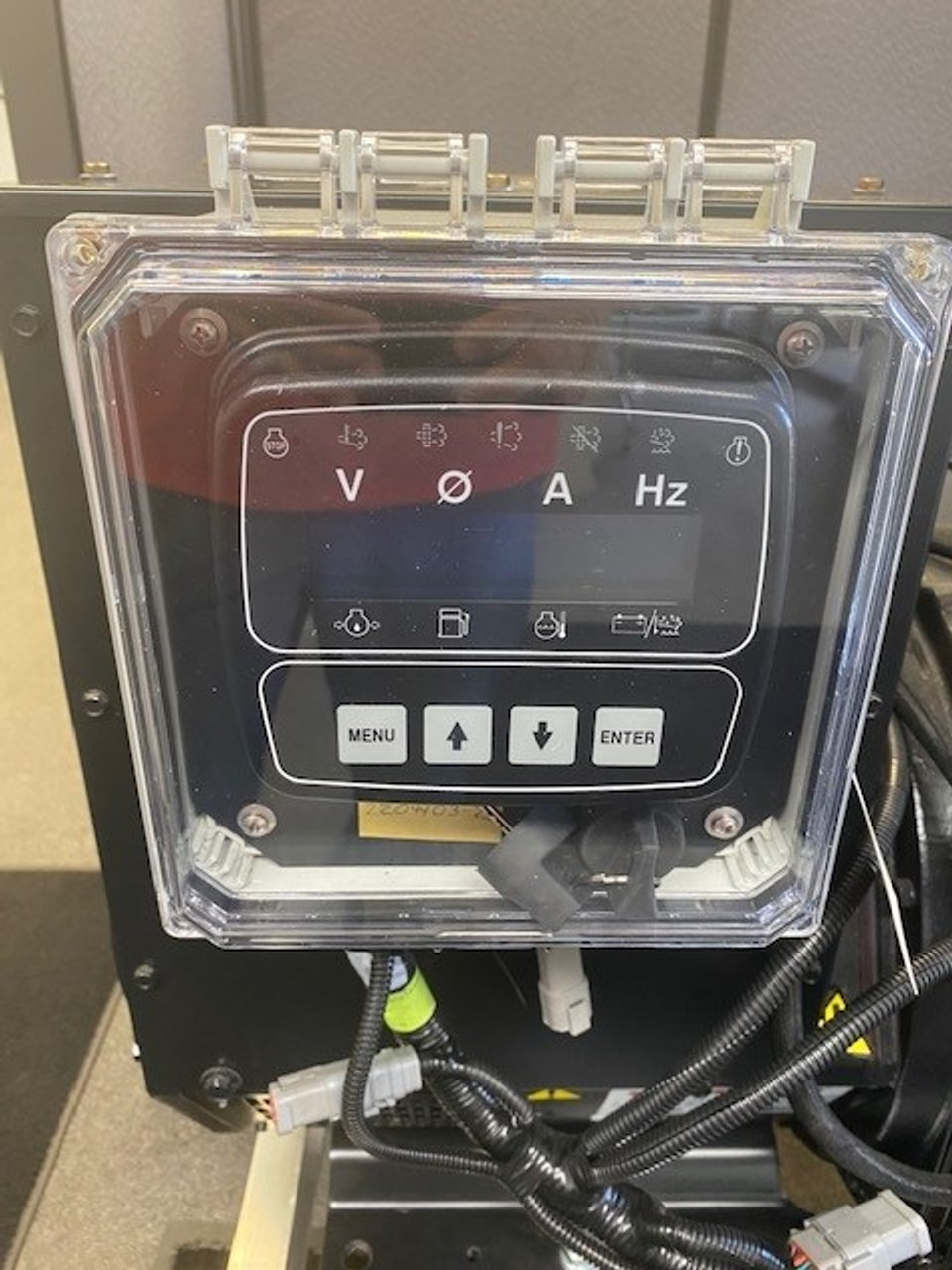

• G-3000 controls including
AC-DC digital display
• Oil drain valve
